Split Indoor Unit Dc Fan Motor Resin Packing Bldc Motor - 310V

Product Details:

Place of Origin:	China
Brand Name:	trusTec
Certification:	CE
Model Number:	ZDK-30-8

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Power:	30 W	Voltage:	DC 310V
Insulation Class:	E	Rotation:	CCW
Speed:	1500RPM	Pole:	8P
ODM Solutions:	Customized AC And EC Motors	ODM Solutions:	ODM Solutions: Customized AC And EC Motors
Highlight:	brushless dc electric motor , 12v dc electric motor , Resin Packing Bldc Motor

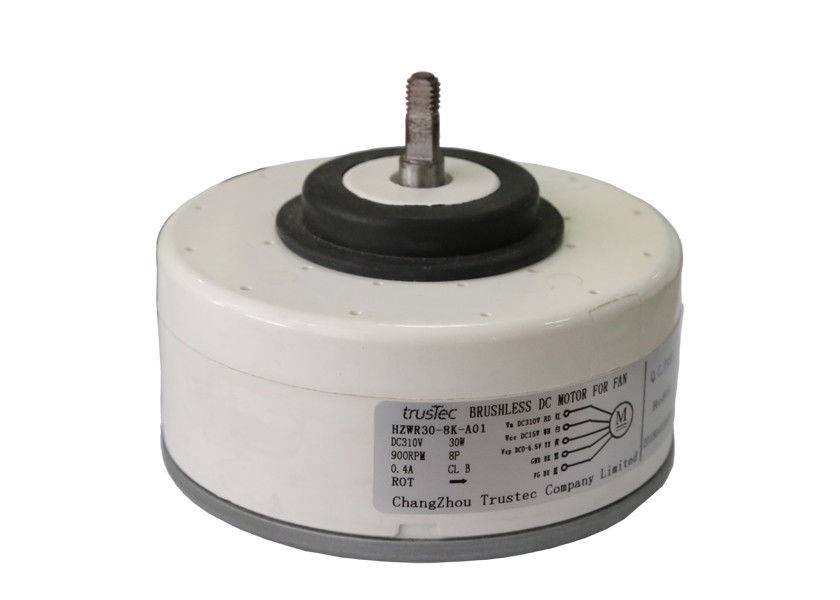

split indoor unit dc fan motor resin packing bldc motor - 310V

Name: Split Indoor Unit Dc Fan Motor Resin Packing Bldc Motor - 310V
Brand: trusTec
SKU: ZDK-30-8
Rating: 4.6 (160 reviews)

Product features of split indoor unit dc fan motor resin packing bldc motor :

Application: split air conditioner indoor unit, air purifier, air blower, fan etc

Input voltage: DC310V

Motor type: brushless DC motor

Drive type; sensor or sensorless

Output rotation: CW or CCW

Protection: current limit

Insulation class: E(120℃)

Frame material: BMC

Lead wire exit: variable

Product specification:
Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, ODM/OEM offered.

Model

Power

/W

Voltage

/V

Speed

/RPM

Noise

/dB

ZDK-30-8

10-30

DC310

~1500

≤25

ZDK-60-8

40-60

DC310

~1550

≤25

Installation Sizes:

Tag:

air conditioner blower motor,

bldc ceiling fan motor,

micro bldc motor
