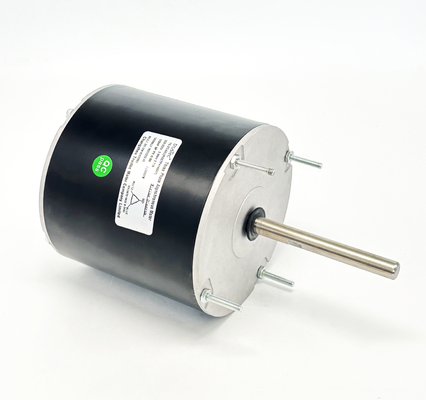

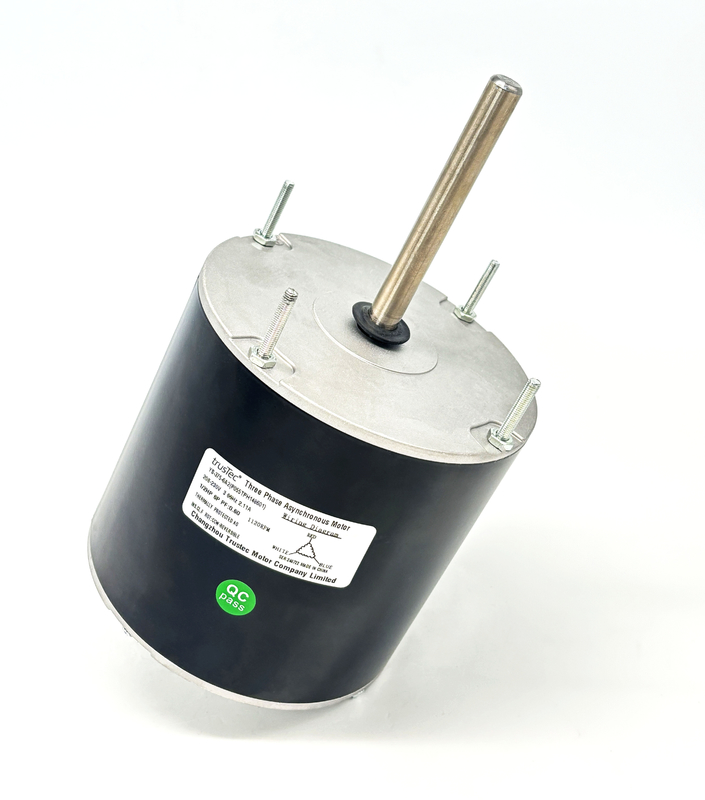

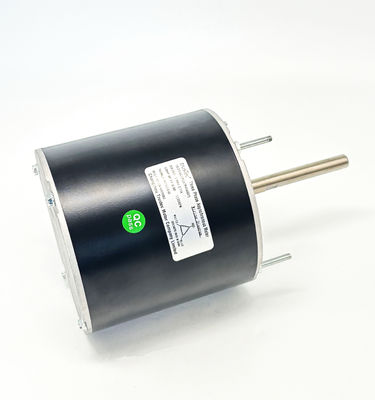

Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ

Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ

  • Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ
  • Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ
  • Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ
Three Phase Condenser Fan Motor - 1/2HP 1120RPM 208-230V 60HZ
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: YS-375-6A2 (P55ZZTPH-1486)
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Condenser Fan Motor Frame Size: φ5.19" / 132mm
Motor Type: Permanent Split Capacitor Supply Voltage: 208-230V
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Frequency: 60Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 2.11A
Phase: Three Phase Output HP: 1/2HP
Shaft Flats: One Flat Rated Speed: 1120RPM
Mounting Orientation: All Angel Shaft Length: 4.29" / 109mm
Insulation Class: Class B Shaft Diameter: 0.45" /11.5mm
Mounting: Stud Mounting All Angel Max. Ambient Temperature: 40℃/104℉
Bearings: Ball Bearing Flat Length: 3" / 76.2mm
Rotation: Reversible Lead Length: 31.5" / 800mm
Highlight:

1120RPM Condenser Fan Motor

,

1/2HP Condenser Fan Motor

,

208-230V Condenser Fan Motor
