| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YSK-74-4A2-CWL |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |

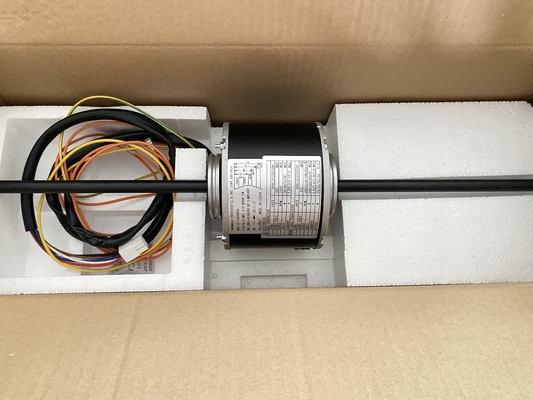

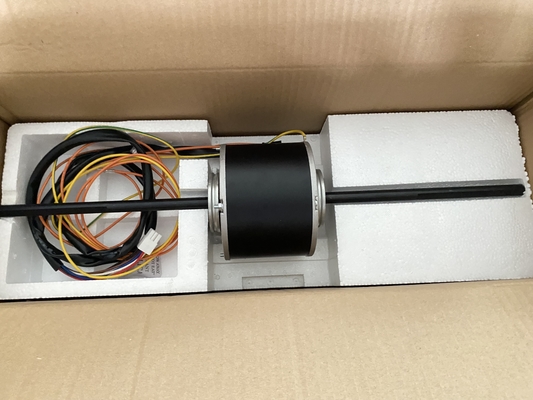

| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

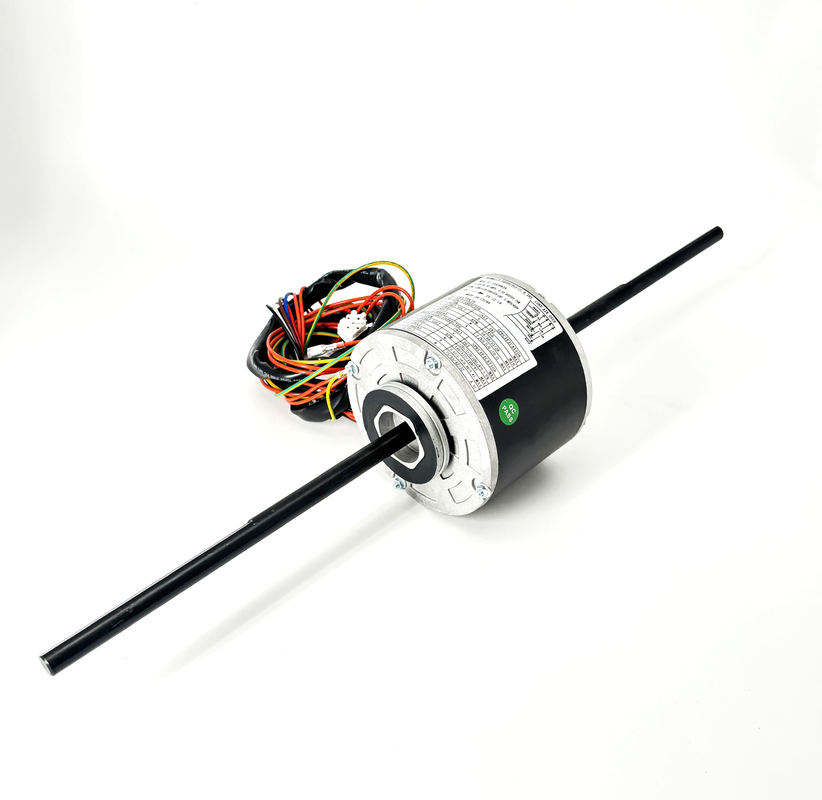

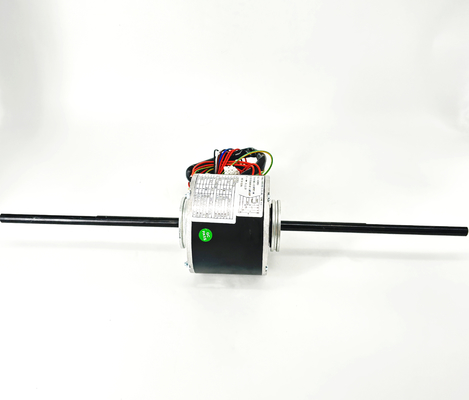

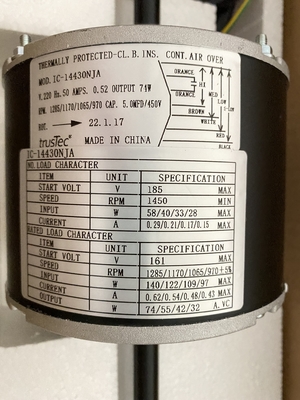

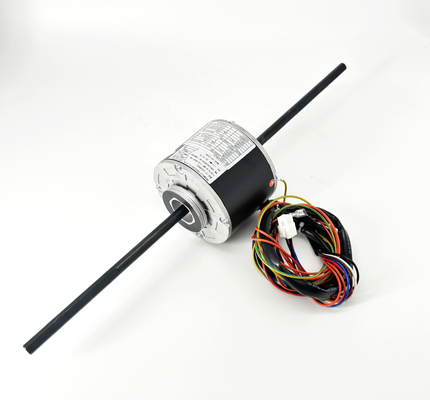

| Product: | Fan Coil Unit Motor | Frame Size: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.52A |
| Phase: | Single Phase | Output HP: | 74W |
| Mounting: | Stud Mounting All Angel | Rated Speed: | 1285/1170/1065/970RPM |
| Bearings: | Ball Bearing | Capacitor: | 5uF/450V |
| Max. Ambient Temperature: | 40℃/104℉ | Shaft Diameter: | 1/2" / 12.7mm |
| Insulation Class: | Class B | Shaft Length: | 8.82" /224mm |
| Flat Length: | 5.04" /128mm | Lead Length: | 55.12" / 1400mm |
| Highlight: | Condenser Fan Motor 970RPM,Multi Speed Condenser Fan Motor,Multi Speed Fan Motor 74W |
||
