Trust our team's Efficient and Competence.
 |
| Place of Origin: | China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | EC-50-8 |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF/EXW) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 20 work days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Product Name: | EC Fan Motor | Application: | HVACR |
|---|---|---|---|
| Power: | 50W | Input Voltage: | 220V |
| Frequency: | 50Hz | Rated Speed: | 1200RPM |
| Size: | φ94mm | Electric Current Type: | EC |
| High Light: | ec motor,ec dc motor |
||

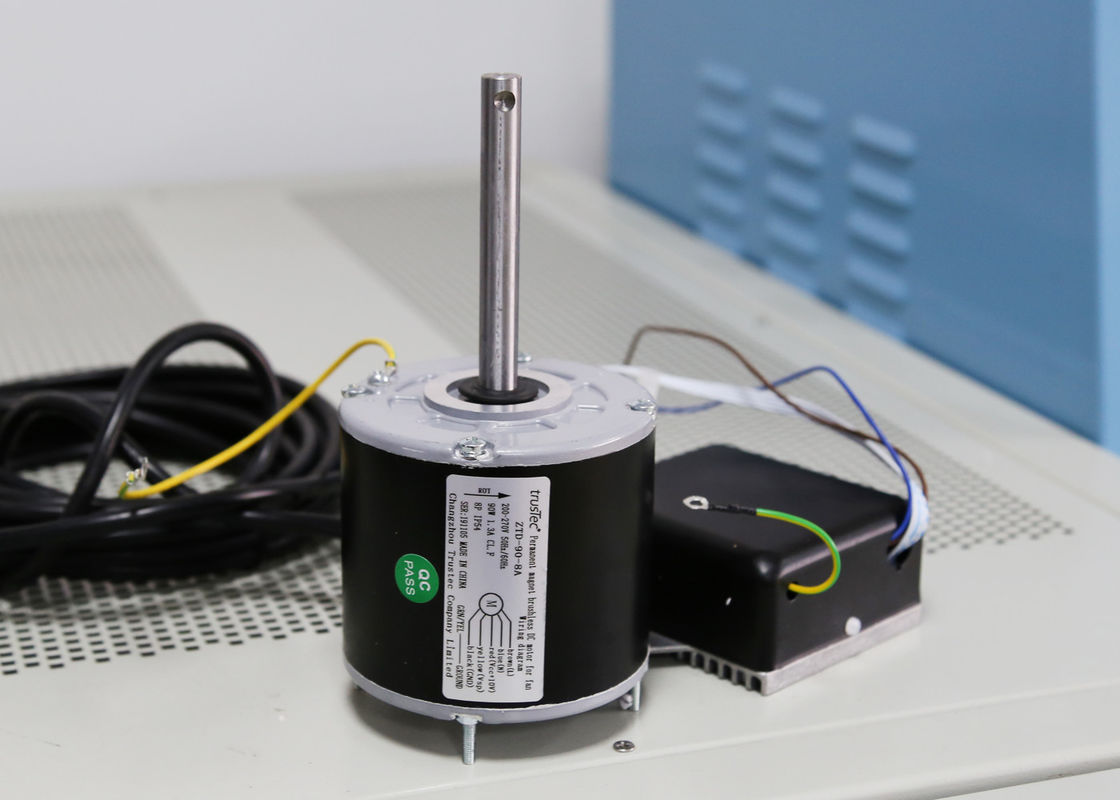

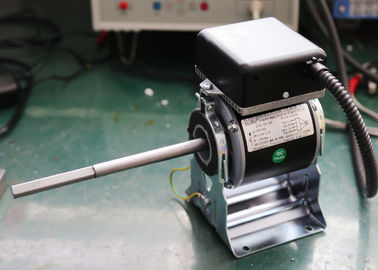

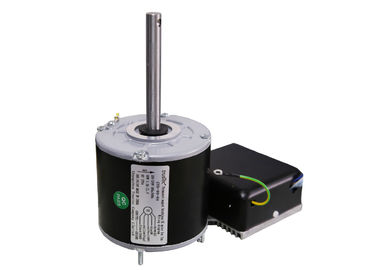

energy saving electric EC fan motor, replacement of AC DC fan motor
Technical Parameters:
| Voltage V |
Frequency Hz |
Input Power W |
Current A |
Output Power W |
Speed RPM |
Torque N·m |
|
| ZTD-25-8 | 220 | 50 | 38 | 0.35 | 25 | 1150 | 0.21 |
| ZTD-35-8 | 220 | 50 | 50 | 0.45 | 35 | 1200 | 0.28 |
| ZTD-50-8 | 220 | 50 | 71 | 0.6 | 50 | 1200 | 0.4 |
| ZTD-70-8 | 220 | 50 | 93 | 0.75 | 70 | 1250 | 0.53 |
| ZTD-90-8 | 220 | 50 | 112 | 0.9 | 90 | 1250 | 0.69 |
| ZTD-120-8 | 220 | 50 | 150 | 1.2 | 120 | 1300 | 0.88 |
| ZTD-150-8 | 220 | 50 | 183 | 1.43 | 150 | 1300 | 1.1 |
| ZTD-200-10 | 220 | 50 | 235 | 1.81 | 200 | 1400 | 1.36 |
| ZTD-250-10 | 220 | 50 | 290 | 2.21 | 250 | 1400 | 1.71 |
| ZTD-500-10 | 220 | 50 | 568 | 4.23 | 500 | 1400 | 3.41 |
Listed are representitive models, performance parameters dimensions can be customized according to request.
1. Ttrustec EC(BLDC) motor can be AC 110V/220V 50Hz/60Hz or DC 24V/48V/310V input.
2. Ttrustec EC(BLDC) motor is up to 85% efficiency, power factor 0.5~0.6 .
3. Ttrustec EC(BLDC) motor can be 0-10VDC/PWM variable speed, multi speeds or single speed.
4. Ttrustec EC(BLDC) motor uses sensorless vector field-oriented control(FOC), lower material cost and smaller failure rate because of no hall sensor, higher efficiency, lower noise, smoother performance curves.
Applications:
HVAC/R fields: air conditioners, centrifugal fans, duct air conditioning unit, treating plant, variable air volume system, etc.
Product Features:
Use low noise high quality ball bearing.
Nickel plating for shaft, electrophoretic coating for enclosure.
IP00~IP54, INS. Class B/F available.
The main products include AC fan motors, BLDC, EC fan motors, centrifugal fans and axial flow fans, which are widely used in heating, ventilation, air conditioning and refrigeration fields.
Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
Our company is attending HVAC/R fairs held in China, Asia, Europe, Mid-East and America every year.
We warmly welcome customers to approve us in the nearby exhibition or directly visit our factory for the long term cooperation.
