TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YSK120-90-4A5 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C, L/C |
| Supply Ability: | 100,000 pcs per month |
| Application: | FCU, Ventilation | Output Power: | 90W |
|---|---|---|---|
| Shaft Type: | Double | Insulation Class: | E/B/F |
| Protection Class: | IP20-IP54 | Bearing: | Rolling Bearing |
| Material: | 100% Pure Copper | Motor Type: | PSC MOTOR |
| ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
| Highlight: | ac fan motor,air cond fan motor,1600RPM HVAC Blower Motor |
||

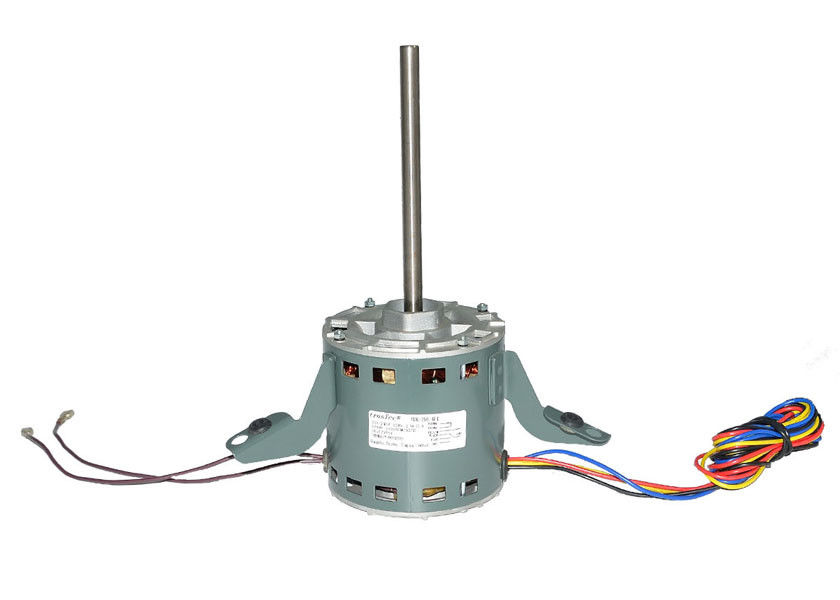

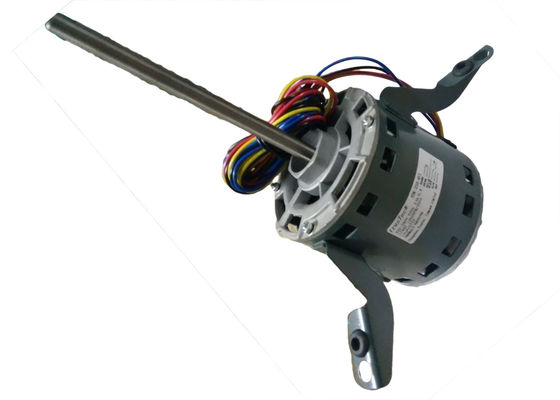

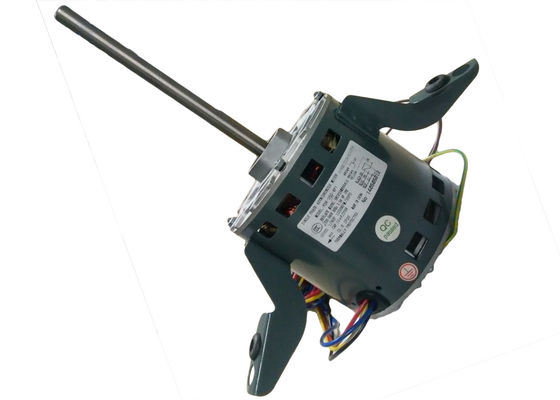

Customized Blower Motor Fan For Air Conditioner High Efficiency
Technical Parameters
Below are representative motors, only for reference, dimensions can be customized according to customer requirements, OEM/ODM service offered.
| Model Number | YSK120-90-4A |
| Voltage | 220-240V |
| Frequency | 60Hz |
| Output Power | 90W |
|
Rated Speed
|
1600RPM/3 SPD |
| Capacitor | 4/370μF |
1. Overview: The temperature of the motor is measured when the fan is under zero static pressure. When leaving the factory, the fan’s temperature rise is usually controlled to be within 40K, and running at the rated voltage of 220-240V, 50/60HZ.
We can customerize the voltage, for example, 3 phase, 230V/400V.
2. Output power: 30W to 200W, which can be adjusted according to the stack length.
3. Insulation class: E, B, F.
4. Protection class: IP20~IP54
5. Bearing: Ball bearing
6. life time: More than 24 months.
7. Certificate: CE, CCC, ISO, UL
Main advantages:
1. Shaft diameter or length can be any as customers needs.
2. Stator height can be any from 10mm to 50mm.
3. Mounting holes size and distance can be any as customers needs
4. Brackets can be either metal or aluminum. Its height can be changed.
5. Motor rotation direction can be CW or CCW.
6.The motors can be customized according to the different voltages, frequencies and rotation speed.
