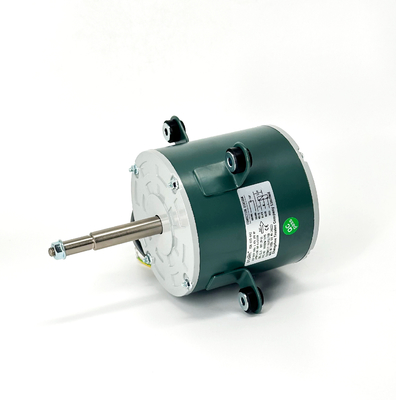

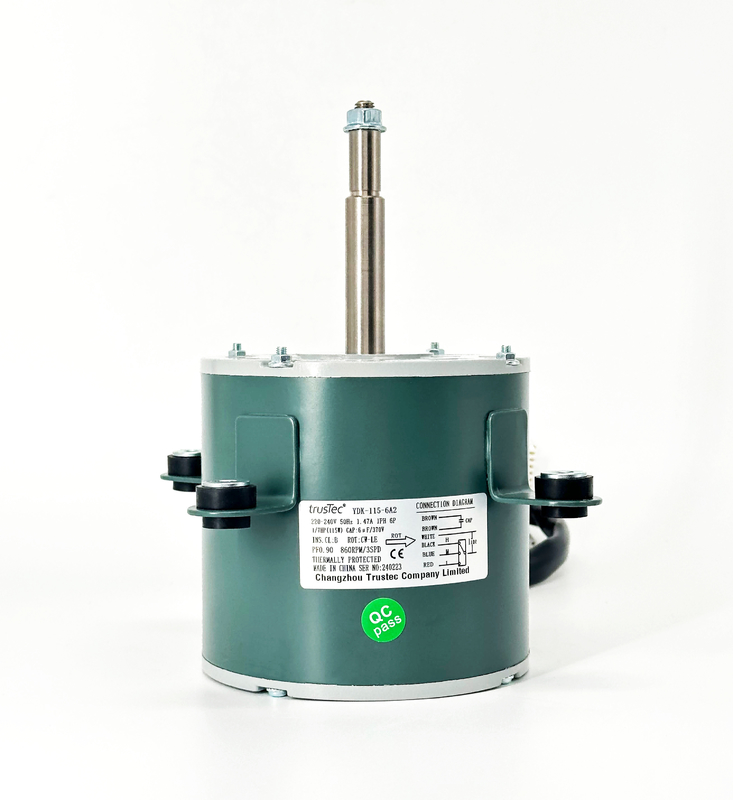

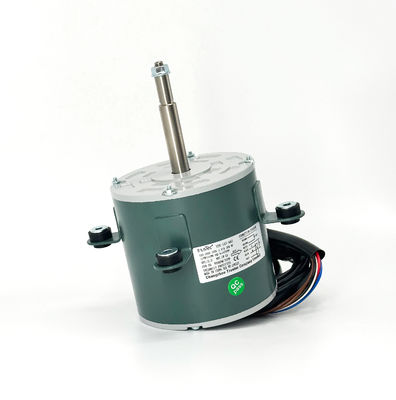

1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor

1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor

  • 1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor
  • 1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor
  • 1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor
1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YDK-115-6A2
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Voltage: 220V-240V Frequency: 50Hz
Power: 1/7HP(115W) Pole: 6P
AMPS: 1.47A Speed: 860RPM/3SPD
Capacitor: 6μF/370V Rotation: CW-LE
High Light:

Totally Enclosed Condenser Fan Motor

,

1/7HP Condenser Fan Motor

,

860RPM Condenser Fan Motor

Key Parameters

Model

Power

/W

Frequency

/Hz

Speed

/RPM

Rated Current

/A

Voltage

/V

YDK-115-6A2 1/7 HP 50 860/3SPD 1.47 220-240

Ps:all dimension can be customized according to customer requirement.



1/7HP 860RPM/3SPD Condenser Fan Motor 6P Totally Enclosed Motor



Product Features

1. Use NSK low noise high quality rolling bearing.

2. Small vibration,high efficiency .

3. Low temperature ,small vibration.

4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.

5.Totally Enclosed Air Over (TEAO) – Allows for all position mounting.



Product Applications

1. Air conditioner indoor / outdoor unit.

2. Air Purifiers, Air refresher.

3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.

4.AC condenser fans



FAQ

Q1- What is the warranty of the motors?

The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- What is the application of the motors?

All the motors are widely used in HVC&R line.



Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.



Q6- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.



Company introduction

Changzhou Trustec Company is working on the solutions supplier for the fan motors and the blower fans.
We are capable of designing and producing the fan motors from diameter 3.3'' to 6.3'' and output power from 8W to 5KW.
As the professional supplier for the fan motors and blowers, we are efficient to respond to the customized requests and make sure the motors and blowers highly matched with the top performance.

Hereof we list the advantages you will agree and approve when you working with us.
1. One Stop Service
2. Solutions Supplier
3. ODM
4. Quality Guarantee
5. Teamwork ability with quick response

We have the export experience over 10 years, our main market is The Kingdom of Saudi Arabia, The Netherlands, South Korea, Vietnam, North America. Our motor and blowers have been approved by CE, CCC and SASO, some motors have UL certificate.

We are keen to develop partners in different countries and very willing to help and support our distributors grow together for win-win business. If you are interesting please call us and send inquiry now, thank you always and have nice days to all of you.



What Is A Condenser Fan Motor?

A condenser fan motor is a component in the condensing unit of an HVAC system, which is located outdoors. It has a significant effect on the comfort level in your home. As such, it plays an important role in sustaining the cooling process in your air-conditioner. It helps produce cool air by drawing air in from the outside and expelling heat into the outdoor air.

Without proper maintenance, a condenser fan motor can accumulate dirt, dust, and debris. Plus, it will experience increased wear and tear over time. And this can lead to warmer air, poorer airflow, and a stuffier indoor environment. A smooth-running condenser fan motor doesn’t only make your home comfortable. It can also help reduce your energy consumption. Furthermore, it improves your indoor air quality, and extends the life of your equipment.

How do I know if my condensor fan motor is bad?

Overheating can be an issue with air condition+ing units and when your unit is hot to touch, you know there is an issue that needs addressing. Any problems with the condenser fan motor can lead to your AC unit overheating, and this is probably the best place to start looking. With regular cleaning and maintenance, the condenser fan motor should run smoothly. You should always consult a qualified contractor to maintain and check your fan motor, as they usually need specific oils to keep working.

Over heating: A Condenser Fan Motor problem to aviod

A condenser fan is designed to run reliably up to a specific temperature – typically it’s 150 degrees. If the motor overheats for any reason, it can quit working or seize up. If the fan stops turning, other costly components like the compressor can sustain damage or be ruined by overheating.

Problems with the fan motor will produce some recognizable warning signs



· A noticeable change in temperature of the air coming from your registers

· The cabinet feels hot rather than warm to the touch

· A steady humming or buzzing noise at the outdoor cabinet

· An acrid odor of burnt wiring coming from the unit
