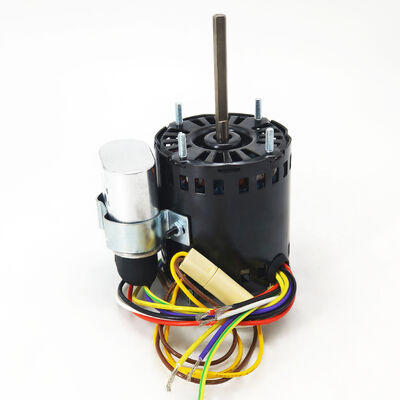

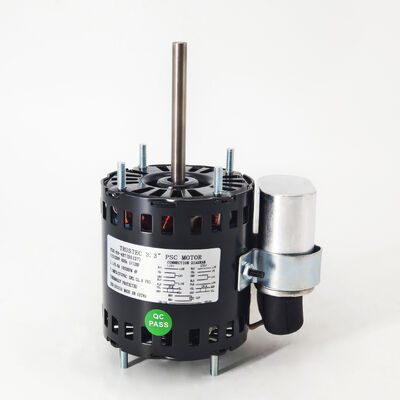

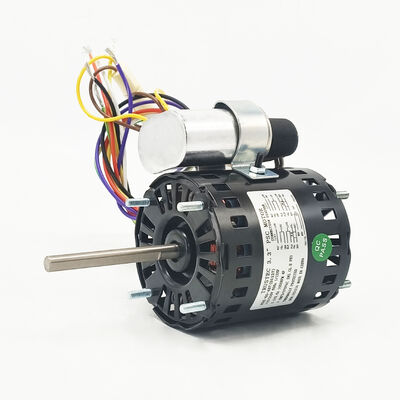

Name: 3.3" PSC Motor - 1/12HP 1/15HP 1/20HP Dual Voltage 115V/230V 1550RPM 7.5uF/370V CCW/CW Rotation - Fasco D1127 Century 9721 Replacement Motor
Brand: Changzhou Trustec Company Limited
SKU: YDK-60-4B5-MJF
Price: 125.00 USD
Availability: InStock

Home Products 3.3 Inch Motor

3.3" PSC Motor - 1/12HP 1/15HP 1/20HP Dual Voltage 115V/230V 1550RPM 7.5uF/370V CCW/CW Rotation - Fasco D1127 Century 9721 Replacement Motor

Product Details:

Place of Origin:	Changzhou, China
Brand Name:	trusTec
Certification:	CE
Model Number:	YDK-60-4B5-MJF

Payment & Shipping Terms:

Minimum Order Quantity:	200 pcs
Price:	Negotiable (FOB/CNF/CIF)
Packaging Details:	Standard carton packing, foam board inside for protection.
Delivery Time:	15 days fresh products after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Product:	3.3" Diameter Permanent Split Capacitor 3 EN 1	Frame:	3.3"/83.8mm
Motor Type:	Permanent Split Capacitor	Supply Voltage:	115/230V
Enclosure Type:	OAO (Open Air Over)	Supply Frequency:	60Hz
Thermal Overload:	Equipped With An Automatic Thermal Overload	Current:	1.1/0.6A
Phase:	Single Phase	Output Power:	1/12-1/15-1/20HP
Shaft Flats:	One Flat	Rated Speed:	1550RPM
Mounting:	Extended Studs	Capacitor:	7.5uF/370V
Insulation Class:	Class B	Pole:	4P
Bearings:	Ball Bearing	Shaft Length:	74.6mm/2.94"
Rotation:	Reversible-CW/CCW	Shaft Diameter:	0.31"/8mm
Max. Ambient Temperature:	40℃/104℉	Flat Length:	2.5"/63.5mm
Motor Shell Length:	3.5"/89mm	Lead Length:	19.6"/500mm
Highlight:	1/15HP 3.3” Motor , 115/230V 3.3” Motor , 1/20HP 3.3” Motor
