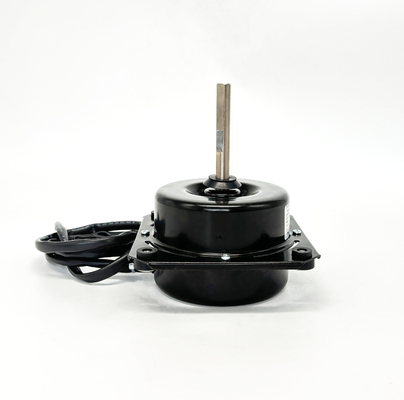

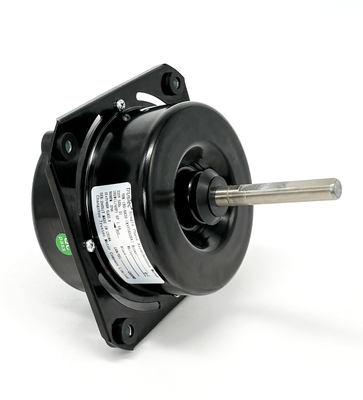

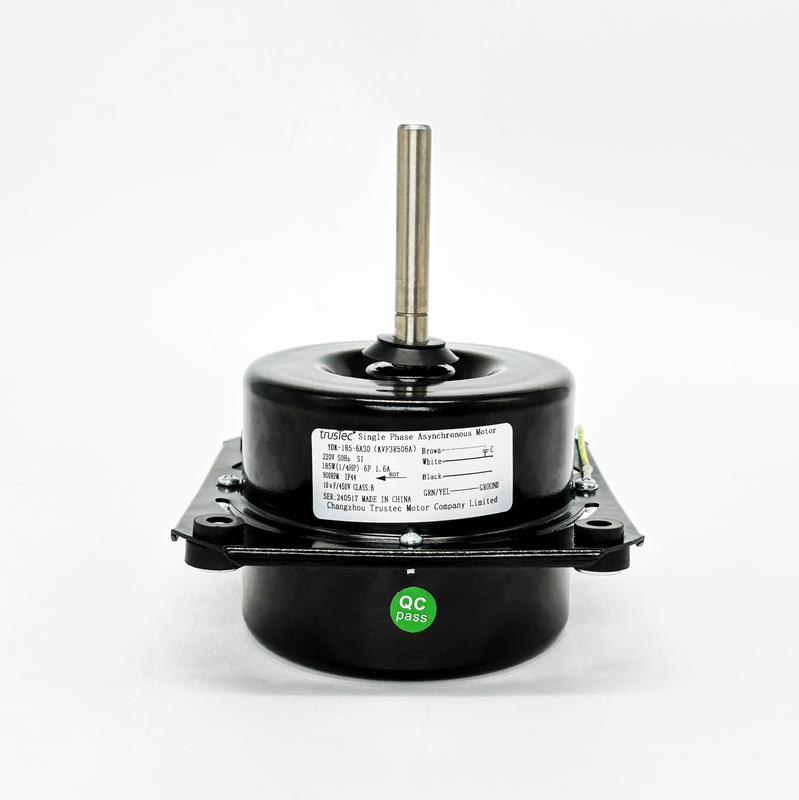

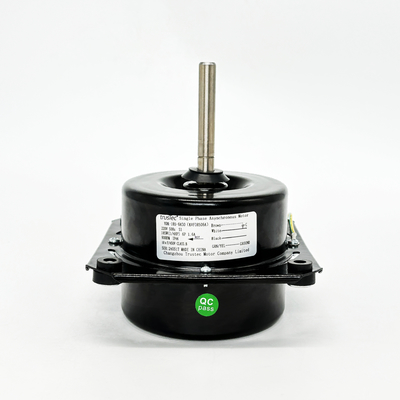

42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ

42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ

  • 42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ
  • 42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ
  • 42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ
42 Frame/120mm Outdoor Fan Motor - 1/4HP 900RPM 220V 50HZ
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: YDK-185-6A6(KVF3R506A)
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Outdoor Fan Motor Frame: Nema 42
Motor Type: Capacitor Run Motor Supply Volatge: 220V
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Frequency: 50Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 1.6A
Phase: Single Phase Output HP: 1/4HP
Shaft Flats: One Flat Rated Speed: 900RPM
Mounting: MTG. Bracket (Horizontal Direction) Capacitor: 10uF/450V
Insulation Class: Class B Shaft Length: 3.5"
Bearings: Ball Bearing Shaft Diameter: 1/2"
Max. Ambient Temperature: 40℃/104℉ Rotation: CW
Replacement Motor: Kulthorn KVF3R506A
High Light:

220V Outdoor Fan Motor

,

1/4HP Outdoor Fan Motor

,

120mm Outdoor Fan Motor
