TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK120-65-6A |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

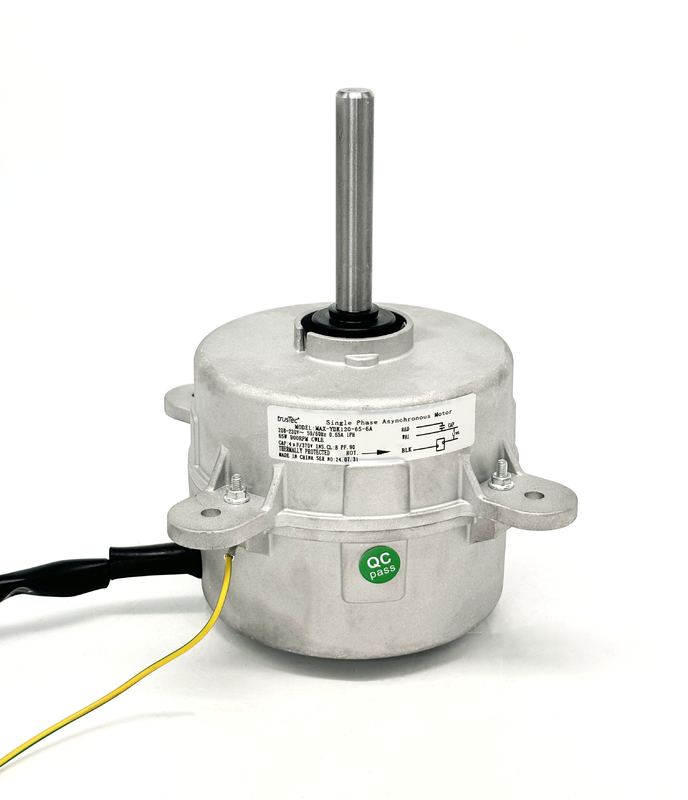

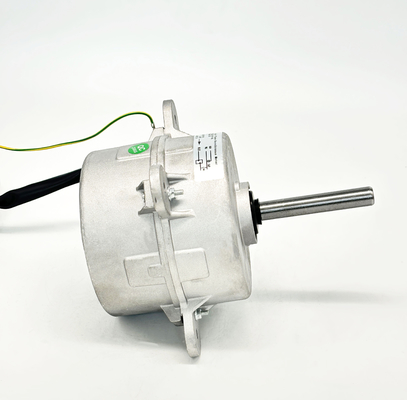

| Product: | Outdoor Fan Motor | Frame: | Nema 42 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.65A |
| Phase: | Single Phase | Output Power: | 65W |
| Mounting Orientation: | All Angel | Rated Speed: | 900RPM |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" / 12.7mm |
| Mounting: | Stud Mounting All Angel | Lead Length: | 27.5" / 700mm |
| Bearings: | Ball Bearing | Poles: | 6P |
| Rotation: | Reversible | Capacitor: | 4uF/370V |
| Max. Ambient Temperature: | 40℃/104℉ | ||
| Highlight: | 120mm Outdoor Fan Motor,208-230V Outdoor Fan Motor,900RPM Outdoor Fan Motor |
||
