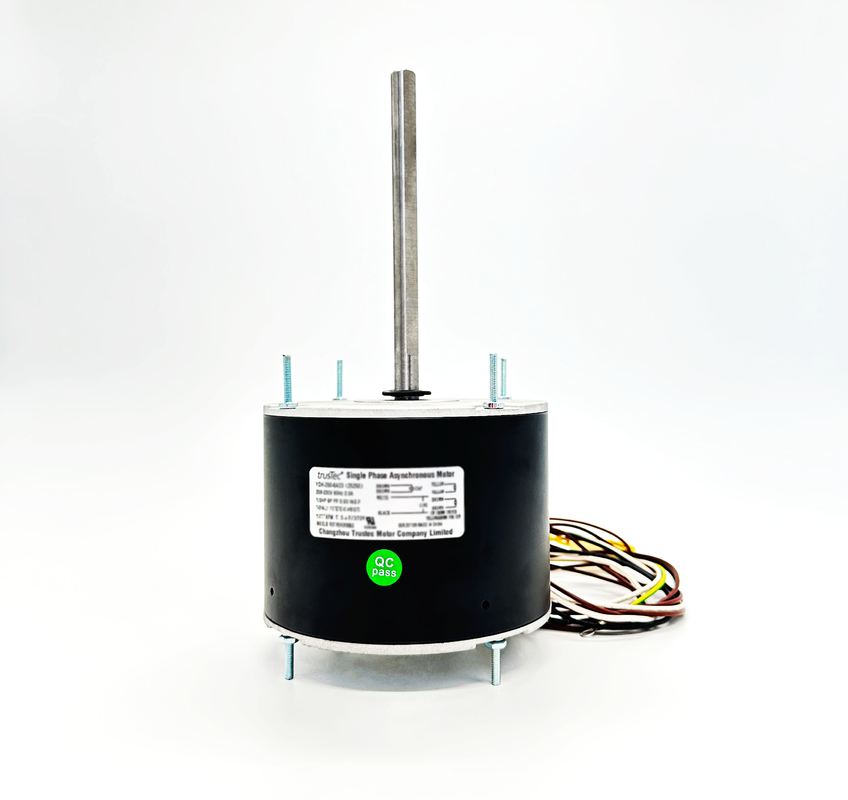

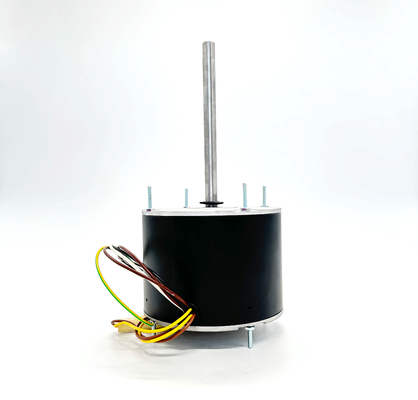

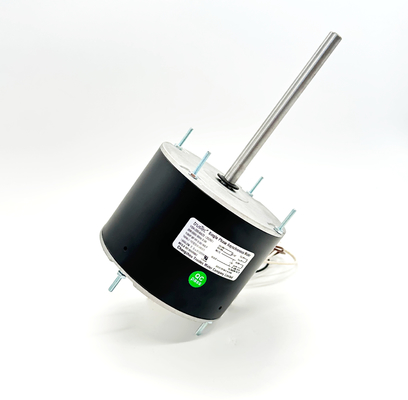

48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ

48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ

  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ
  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ
  • 48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ
48 Frame Condenser Fan Motor - Ambient Temperature 70℃ Multi HP 1/8-1/3HP 825RPM 208-230V 60HZ
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、UL529388
Model Number: CTM5-459HS
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Condenser Fan Motor Frame: Nema 48
Motor Type: Permanent Split Capacitor Supply Volatge: 208-230V
Enclosure Type: TEAO(Totally Enclosed Air Over) Supply Frequency: 60Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Current: 2.1A
Phase: Single Phase Output HP: 1/8-1/3HP
Shaft Flats: One Flat Rated Speed: 825RPM
Mounting Orientation: All Angle Capacitor: 7.5uF/370V
Drain Hole: Opposite Shaft End Insulation Class: Class F
Mounting: Stud Mounting All Angel Shaft Length: 5.5"
Bearings: Ball Bearing Shaft Diameter: 1/2"
Max. Ambient Temperature: 70℃/158℉ Rotation: Reversible
High Light:

48 Frame Condenser Fan Motor

,

1/8-1/3HP Condenser Fan Motor

,

208-230V Condenser Fan Motor



Cross Reference



TRUSTEC
DESCRIPTION
CENTURY/
AO SMITH
FASCO
GE/GENTEQ
US MOTORS/
EMERSON
WAGNER
YORK SOURCE
MARS
NORDYNE/
PARTNERS
CHOICE
RHEEM/RUUD
PROTECH
CTM5-465
1/3 1/4 1/5 1/6 HP 208-230V 1075/2 RPM
FE6000
D2827
3465 5462
WG840465
S1-FHM3465
10465 01-0695 51-23053-21
CTM5-468
1/2 1/3 1/4 1/5 HP 208-230V 1075/2 RPM
FE6002
  3468 5465
WG840468
S1-FHM3468
10468 01-0697
CTM5-469
1/3 1/4 1/5 1/6 HP 208-230V 825/2 RPM
FE6001
D2826
3469 5464
WG840469
S1-FHM3469
10469 01-0696 51-20760-11
CTM5-458HS
High Temp 70°C MH 1/6-1/3 208-230V 1075/1 RPM
ORM5458BF
  3458HS 3323H     20458
CTM5-459HS
High Temp 70°C MH 1/8-1/3 208-230V 825/1 RPM
ORM5488BF
  3459HS 1874H     20459





You can refer to the file for more motor models at CROSS REFERENCE TRUSTEC MOTOR.pdf
