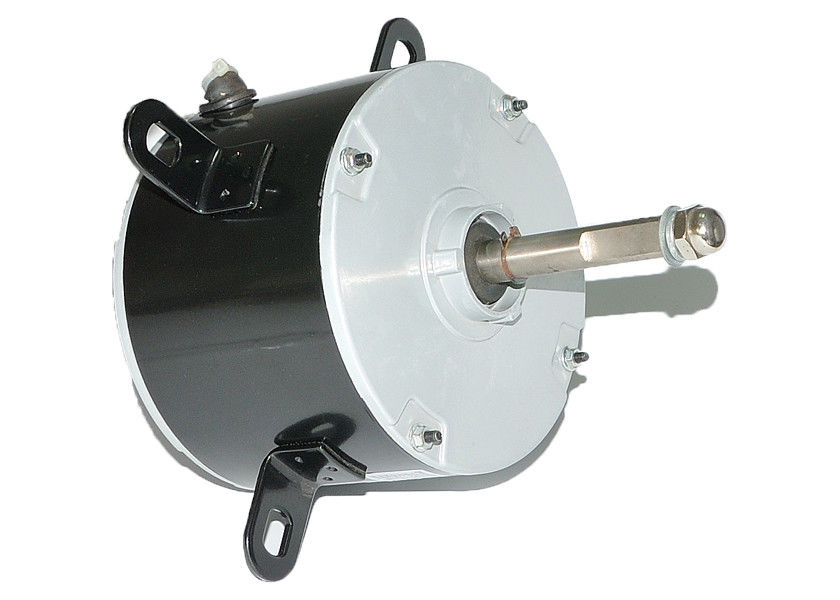

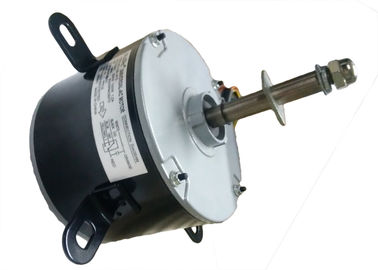

6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency

6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency

  • 6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency
  • 6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency
  • 6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency
6 Pole Air Cooler Fan Motor 150W 220V Thermally Protected High Efficiency
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YDK140-150-6T5
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description

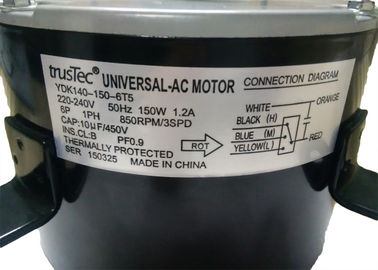

Power: 150W Frequency: 50Hz
Pole: 6 Voltage: 220-240V
Current: 1.2A Capacitance: 10μF/450V
Speed: 850RPM/3 SPD Insulation Class: B
Product Name: Air Cooler Motor ODM Solutions: Customized AC And EC Motors
ODM Solutions: Customized AC And EC Motors ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

air cooler fan motor

,

cooling fan motor

6 Pole Air Cooler Motor 150W 220V Thermally Protected



Product specification:


Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered .



Model

Power

HP

Voltage

V

Frequency

Hz

Speed

RPM

Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B


Product materials:


1. Rolling bearing, NSK low noise high quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.

Product use:


1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.


Strong points:

1. 21,000 square meters factory area.
2. 100,000 pcs fan motors monthly production capacity.
3. 20 years electric motor manufacturing history.
4. Most of motor parts produced by ourself, include stator assy, rotor assy, cover assy etc.
5. With Professional QC team and Perfect cerfication system.
6. Prompt reply within 12 hours.

About company:


Changzhou Trustec Co.,Ltd is leading manufacturer, individually established as export department in 2011, and focusing on the designing and producing all kinds of motors for room, commercial and central air conditioners.



Mainly includes fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure

motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



All motors have been approved by RoHS, CCC, CE and UL certificates, and the products have been exported to the main market such as North America, Europe and Mid-east.


FAQ:



Q: Do you offer OEM service?
A: Yes.

Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?
A: About 15-30 days after receiving deposit or original L/C.

Q: What certifiicate do you have?
A: We have UL, CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia etc.
