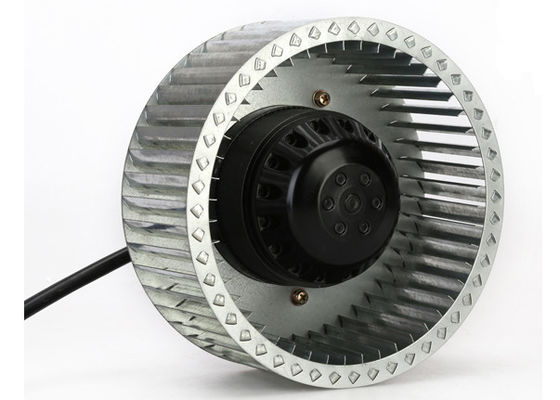

8 Inch Ventilation Fan, Forward Curved 1200m³/H Air Flow Centrifugal Blower
Place of Origin:China
Brand Name:trusTec
Certification:CE and LVD approval
Model Number:YWF4E-200
Minimum Order Quantity:200pcs
Price:Negotiable (EXW/FOB/CNF/CIF)
Payment Terms:T/T, L/C
Supply Ability:100,000 pcs per month
Tags:
Product Details
Highlight:
centrifugal exhaust fan
,centrifugal duct fan
,1200m3/H Air Flow Centrifugal Blower
Product Type:
Forward Centrifugal Fan
Fan Diameter:
200mm
Voltage:
220V
Frequency:
50Hz
Air Flow:
1200m³/h
Power:
330W
Speed:
1280RPM
Air Volume:
714CFM
Fan Type:
AC Direct Drive Centrifugal Fans
ODM Solutions:
Customized AC And EC Motors
ODM Solutions:
Customized AC And EC Motors
ODM Solutions:
ODM Solutions: Customized AC And EC Motors
Product Description
8 inch ventilation fan, forward curved 1200m³/h air flow centrifugal blower
Application of forward centrifugal fan
Fan filter unit, clean room equipment, thermostat, humidifier, dehumidifier.
Ventilation, inline-fans, air exhaust equipment, range hood, heat recovery.
Air cleaner, tele-communication equipment or facilities, moving air conditioner.
Outline Drawing
Fan features:
Impeller made of galvanized sheet steel with powder coating.
Protection Class IP23.
Ball bearing.
Thermal overload protector(TOP) wired intermally.
Insulation class F.
Direction of rotation CW.
Ambient temperature -40~65℃.
Compact structure.
Small size.
Light weight.
Convenient installation and use.
Technical Parameters
| Model |
Air Flow /m³/h |
Voltage /V |
Frequency /Hz |
Power /W |
Speed /RPM |
Noise /dB |
| YWF2E-120 | 252 | 230 | 50 | 68 | 2450 | 65 |
| YWF2E-140 | 480 | 230 | 50 | 75 | 2360 | 65 |
| YWF2E-150 | 579 | 220 | 50 | 68 | 2050 | 59 |
| YWF4E-150 | 351 | 220 | 50 | 48 | 1412 | 54 |
| YWF2E-160 | 748 | 220 | 50 | 230 | 2560 | 68 |
| YWF4E-160 | 460 | 220 | 50 | 165 | 1300 | 51 |
| YWF4E200-4 | 1200 | 220 | 50 | 330 | 1280 | 59 |
| YWF4E225-4 | 1710 | 220 | 50 | 510 | 1320 | 65 |
| YWF4E250-4 | 2670 | 220 | 50 | 900 | 1330 | 72 |
| YWF4E250-6 | 1545 | 220 | 50 | 320 | 900 | 62 |
| YWF4E280-4 | 2800 | 220 | 50 | 1600 | 1360 | 77 |
| YWF4E280-6 | 2250 | 220 | 50 | 450 | 900 | 62 |
| YWF4E315-4 | 4300 | 220 | 50 | 2300 | 1360 | 80 |
| YWF4E315-6 | 2250 | 220 | 50 | 720 | 870 | 68 |
Product Summary
8 inch ventilation fan, forward curved 1200m³/h air flow centrifugal blower Application of forward centrifugal fan Fan filter unit, clean room equipment, thermostat, humidifier, dehumidifier. Ventilation, inline-fans, air exhaust equipment, range hood, heat recovery. Air cleaner, tele-communication ...
