TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YSK120-90-4A |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Capacitor: | 4uF/370VAC | Power: | 90W |
|---|---|---|---|
| Voltage: | 220-240V | Frequency: | 60Hz |
| Speed: | 1600RPM/3 SPD | Shaft: | Double Shaft |

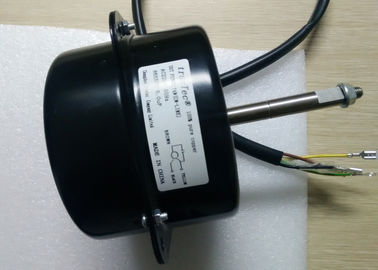

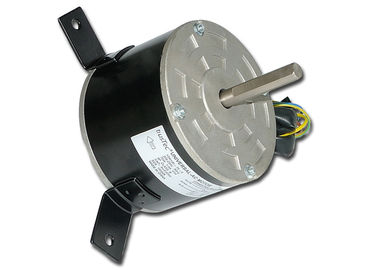

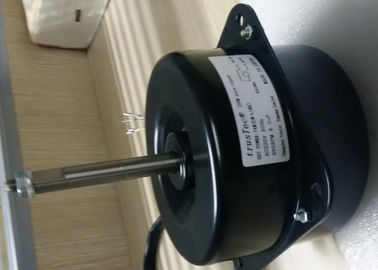

| Product Name: | Indoor Fan Motor | ODM Solutions: | Customized AC And EC Motors |
| ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | ODM Solutions: Customized AC And EC Motors |
| High Light: | replacement fan motor,air cond fan motor |
||
Product Features:
High efficiency and low temperature rise:
it can be optimized in design in accordance with different kinds of indoor units, thus to guarantee the best match between air wheel and surface cooler.
Low noise and small vibration:
being adapted international famous qualified low noise ball bearing, it makes motor long life and no need for more oil supplying;
Product Applications:
YSK120 series single and double shaft fan motors are mostly used for 2P, 3P, 4P split type indoor air conditioner, as well as other related ventilation equipment.
Technical Parameters
Below are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM service offered.
| Model Number |
Voltage /V |
Frequency /Hz |
Output Power /W |
Rated Speed /RPM |
Capacitor /μF |
| YSK120-37-4A | 220-240 | 50 | 37 | 1350/3 SPD | 3/370 |
| YSK120-40-4A3 | 220-240 | 50 | 40 | 1100/3 SPD | 3/370 |
| YSK120-50-4A2 | 220-240 | 50 | 50 | 1300/3 SPD | 3/400 |
| YSK120-64-4A | 220-240 | 50 | 64 | 1320/3 SPD | 3/400 |
| YSK120-90-4A | 220-240 | 60 | 90 | 1600/3 SPD | 4/370 |
| YSK120-90-4A4 | 220-240 | 50 | 90 | 1300/3 SPD | 5/370 |
| YSK120-90-4A5 | 220-240 | 50 | 90 | 1175/3 SPD | 4/370 |
| YSK120-120-4A | 220-240 | 60 | 120 | 1300/4 SPD | 3/370 |
| YSK120-185-4A | 220-240 | 60 | 185 | 1625/3 SPD | 7.5/370 |
Main advantages:
20 years history.
Competitive price.
Guaranteed quality.
Fast delivery time.
High efficiency.
Power saving.
Professional Service.
Certification for UL, CE, CCC, ISO9001.
FAQ:
Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA, we welcome customers to purchase from our distributors and also welcome customers to join in our distribution relation.
How long you could prepare samples?
Normally 3 days if we have the sample in hand. If customized one, about 10days around.
How about batch order production?
Normally 15-30 days, according to the order quantity and electrical difficulty.
How do you ship the goods?
We will choose the most convenient and competitive shipping method for customers, by sea, by air, by courier (UPS, DHL, Fedex, TNT etc).
