TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | trusTec |
| Certification: | UL Approval E529388，CE approval |
| Model Number: | YS-120-8 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |
| Power: | 120W | Voltage: | 220V |
|---|---|---|---|
| Phase: | Single Phase | Speed: | 925RPM |
| Pole: | 8 | Insulation Class: | B |
| Protection Class: | IP54 | Application: | Central Air Conditioner |
| Frequency: | 50Hz | Product Name: | Air Conditioner Fan Motor |
| ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | ODM Solutions: Customized AC And EC Motors |
| High Light: | 925RPM Aluminum Air Conditioner Fan Motor,single phase Air Conditioner Fan Motor,925RPM AC Fan Motor |
||

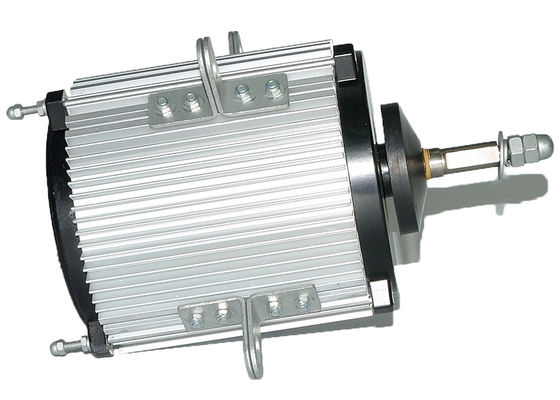

Aluminum Air Conditioner Fan Motor
Product specification:
Listed are representative motors, only for reference, sizes and parameters can be customized according to customer requirements, OEM/ODM offered.
| Model |
Power /W |
Voltage /V |
Speed/ RPM |
Current /A |
| YDK100-6 | 100 | 220 | 850/700 | 0.85 |
| YDK150-6 | 150 | 220 | 800/600 | 1.5 |
| YDK-200-6 | 200 | 220 | 830/600 | 2 |
| YDK-270-6 | 270 | 220 | 630/400 | 1.5 |
| YDK-380-6 | 380 | 220 | 680/400 | 2 |
| YDK-450-6 | 450 | 220 | 1000 | 3.5 |
| YS-250-6 | 250 | 380-415 | 925 | 0.9 |
| YS-370-6 | 370 | 380-415 | 925 | 1.3 |
| YS-550-6 | 550 | 380-415 | 925 | 1.4 |
| YS-750-6 | 750 | 380-415 | 720 | 2.5 |
| YS-120-8 | 120 | 380-415 | 925 | 1 |
| YS-370-8 | 370 | 380-415 | 720 | 1.5 |
| YS-550-8 | 550 | 380-415 | 710 | 2 |
| YS-750-8 | 750 | 380-415 | 710 | 2.5 |
Product application:
Central air conditioner outdoor fan and other ventilation equipment.
Product features:
1. Customized aluminum enclosure, efficient, low noise, small vibration, high waterproof grade.
2. Nickel plating for shaft, electrophoretic coating for enclosure.
3. Use NSK low noise and high quality rolling bearing.
