Place of Origin: | China |
Brand Name: | trusTec |
Certification: | UL Approval E529388,CE approval |
Model Number: | YSK140-180-6A |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Application: | Fresh Air Ventilation | Power: | 180W |
---|---|---|---|
Shaft: | Double Shaft | Rotation: | CCW-LE |
Speed: | 1075RPM/3 SPD | Frequency: | 60Hz |
Product Fan Motor: | Air Conditioner Fan Motor | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
High Light: | air condition fan motor,air conditioning fan motor,AC Universal Air Conditioner Fan Motor |

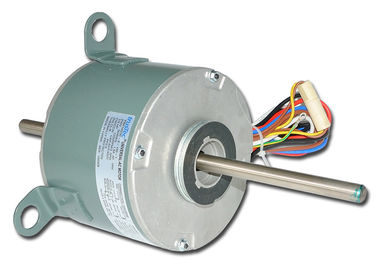

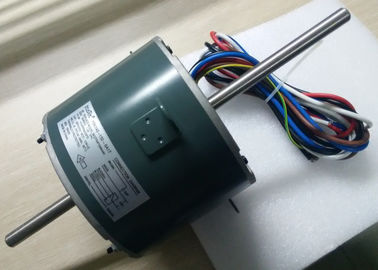

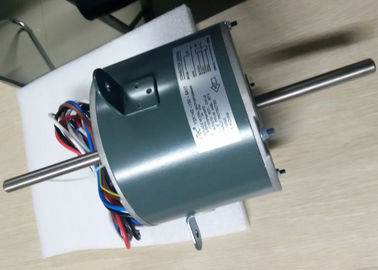

AC Universal Air Conditioner Fan Motor 220V 180W With Double Shaft
Product List:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.
Model Number | Voltage | Frequency | Power | Speed | Rotation | Capacitor | OEM Model |
YSK140-180-6A | 208-230 | 60 | 1/4HP | 1075/3 SPD | CCW-LE | 5/370 | 5KCP39FG5829ET |
YSK140-185-6A | 208-230 | 60 | 1/4HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGK111T |
YSK140/35-4-185A | 230 | 60 | 1/4HP | 1170/3 SPD | CCW-LE | 7.5/370 | KU3011 |
YSK140/35-4-185 | 220/230 | 50 | 1/4HP | 1300/3 SPD | REVERSIBLE | 7.5/450 | |
YSK140-185-4A5 | 230 | 50 | 1/4HP | 1360/3 SPD | REVERSIBLE | 7.5/450 | PM4104188 |
YSK140-185-4A6 | 230 | 50 | 1/4HP | 1070/3 SPD | CCW-LE | 7.5/450 | PM4104125 |
YSK140-185-4A7 | 230 | 50 | 1/4HP | 1100/3 SPD | CCW-LE | 5/450 | PM4104167 |
YSK140-185-4A17 | 115 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | D773 |
YSK140-185-4A18 | 208-230 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | D774 |
YSK140-185-4A19 | 208-230 | 60 | 1/4HP | 1625/3 SPD | CCW-LE | 5/370 | K55HXSPJ-3134 |
Motor Application:
3~5HP window air conditioner
3~5HP commercial air conditioner
5HP cabinet air conditioner
Fresh air ventilation
Features:
Copper winding design (aluminum winding available if request)
Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
Steel end cap plated, rolled steel shell or resin packed.
Benefits:
1. Experience and good service.
We professionally produce fan motors for more than 20 years. And we have done international trade for many years. So we can supply high quality products and services.
2. Technical advantage
We have our own workshop, high speed punching machine, digital control machine, grinding machine, automatic coil winding machine, injection machine and many other advanced equipments. Key production parts are manufactured by ourselves.
3. Product advantage
High efficiency, energy saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc. We have cost advantage, technological advantage and substantial experience. So you can take the same cost purchase more better goods, or spend less for the same product.
Company information:
Changzhou Trustec Co.,Ltd is a reliable and professional motor factory who has won high reputation among customers with our high quality products and great service. We believe the high quality and good price of our products will be your better choice.
1. Reputation: 20 years focusing on motor’s design with a professional technical elite team. We pursue the company of “Survive with high quality, develop with credibility”.
2. Quality guarantee: Strict quality management and supervision systems. (CE/UL/RoSH certification)
3. Price: We have our own factory, the price of our products are all factory price.
4. Characteristics: Independent brand, good at innovation, energy conservation design.
5. Fast shipment
6.Powerful ODM ability.
FAQ:
1. Q: How can you ensure the motor can drive the machine?
A: Our factory choose 100% pure copper wire and capacitor with appropriate volume, our professional manager provide you accurate purchase guide.
2. Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover, our inspectors check the dynamic balance repeatedly.
3. Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production, IP55 class insulation paper avoid cutting-out, multilple inspections ensure no carelessness exist, professional application guidance.
4. Q: What information do i need to provide in order to get a quotation?
A: Generally, information about power, voltage, frequency, speed, also motor size, mounting type is needed in order to select a right fan motor for you and provide you a quotation.
5. Q: Can I have a discount for the quoted price?
A: The quoted price is based on the order quantity. If quantity increase, please provide the information to our sales. We will provide you a further discount.
