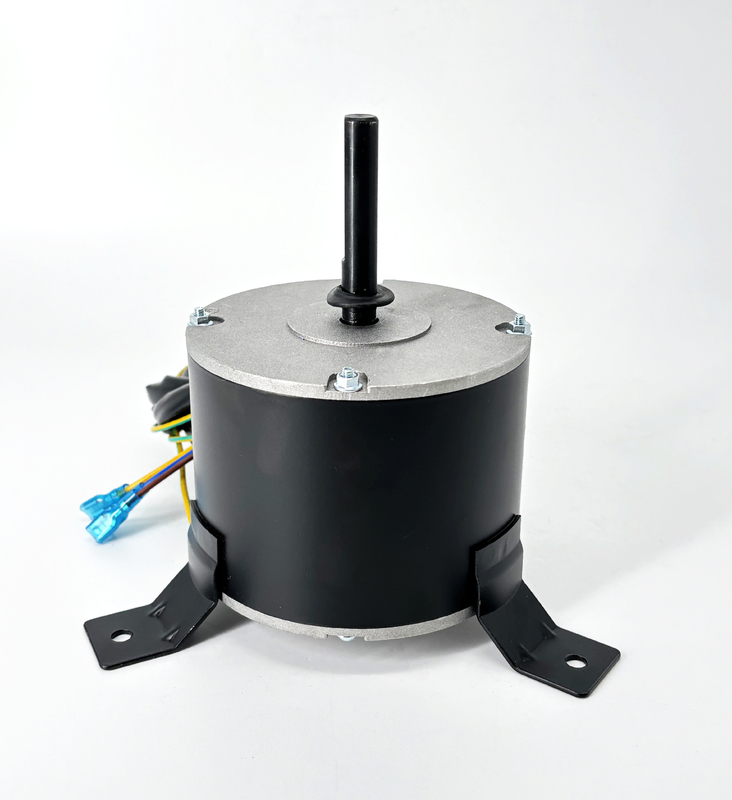

Air Conditioner Condenser Fan Motor - 1/5HP 880RPM 220-240V 50Hz
Place of Origin:Changzhou, China
Brand Name:trusTec
Certification:CE
Model Number:YDK-150-6A55-CWL
Minimum Order Quantity:200 pcs
Price:Negotiable (FOB/CNF/CIF)
Payment Terms:T/T, L/C
Supply Ability:100,000 pcs per month
Tags:
Product Details
Highlight:
6SPD Fan Coil Unit Motor
,1/4HP Fan Coil Unit Motor
,1550RPM Fan Coil Unit Motor
Product:
Condenser Fan Motor
Frame Size:
120mm
Motor Type:
Permanent Split Capacitor
Supply Voltage:
380V
Enclosure Type:
TEAO(Totally Enclosed Air Over)
Supply Frequency:
50Hz
Thermal Overload:
Equipped With An Automatic Thermal Overload
Current:
1.5A
Phase:
Single Phase
Output HP:
1/5HP
Shaft Flats:
One Flat
Rated Speed:
880RPM
Mounting:
Stud Mounting All Angel
Capacitor:
5uF/450V
Bearings:
Ball Bearing
Shaft Diameter:
0.5" / 12.7mm
Insulation Class:
Class B
Lead Length:
35.4" / 900mm
Rotation:
CW-SE
Max. Ambient Temperature:
40℃/104℉
Product Description
Product Summary
