Place of Origin: | China |
Brand Name: | trusTec |
Certification: | UL Approval E529388,CE approval |
Model Number: | YDK120-185-6A |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Application: | Split Air Conditioner Indoor Unit | Power: | 185W |
---|---|---|---|
Shaft Type: | Single | Insulation Class: | E/B/F |
Bearing: | Rolling Bearing | Material: | 100% Pure Copper |
Product Name: | Indoor Fan Motor | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
Highlight: | 1075rpm Single Shaft Ac Fan Motor,GE ingle Shaft Ac Fan Motor,1075rpm Air Conditioner Fan Motor |

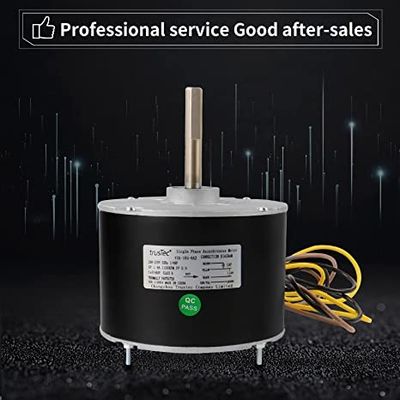

Air Conditioner AC Fan Motor 4 Pole 6 Pole
Technical Parameters
Below are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM service offered.
Model Number |
Voltage /V |
Frequency /Hz |
Output Power /W |
Rated Speed /RPM |
Capacitor /μF |
YDK120-74-4A | 220-240 | 50 | 74 | 1390/3 SPD | 4/370 |
YDK120-75-6A | 220-240 | 50 | 75 | 850 | 4/370 |
YDK120-90-4A | 208-230 | 60 | 90 | 1550 | 4/370 |
YDK120-90-6 | 220 | 50 | 90 | 890/3 SPD | 5/370 |
YDK120-90-6A2 | 220-240 | 50 | 90 | 850 | 5/400 |
YDK120-110-6A2 | 220-240 | 50 | 110 | 900 | 5/370 |
YDK120-150-6A | 220-240 | 50 | 150 | 840/3 SPD | 6/370 |
YDK120-185-4A | 220-240 | 50 | 185 | 1250 | 5/440 |
YDK120-185-4A2 | 220-240 | 50 | 185 | 1050/3 SPD | 10/370 |
YDK120-185-6A | 220-240 | 60 | 185 | 950 | 5/400 |
YDK120-185-6A2 | 220-240 | 50 | 185 | 950 | 5/400 |
Product Features:
1. Use NSK low noise high quality rolling bearing.
2. Nickel plating for shaft, electrophoretic coating for enclosure.
3. Insulation class E/B/F, protection class IP20~IP54.
4. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
5. 100% pure copper, aluminum motor can also be available if customer need large quantity.
Product Applications:
1. Used for 2P, 3P, 4P split type indoor air conditioner.
2. It adopts high quality thermost encapsulation materials.
3. Mini type, light, little libration, low noise, high efficiency.
4. Two serials of single speed and three speed.
5. Advanced manufacturing equipment.
6. Skilled craftwork, high level of automatization.
Main advantages:
1.Our company has independent R & D team, all products are using CAD / CAM computer-aided design, product appearance adopts three-dimensional solid design, key components are analyzed by numerical simulation, rotatable components pass dynamic balance test.
2.Cooperated with powerful universities, we continuously improve the technology. Starting with new technology, new materials and new technology, we will make high-tech fan motors and provide our customers with comprehensive technical support and solutions.
Description:
1. With advanced technology and production equipment, our company is awarded as the new high-tech enterprise and occupational health and safety management system certification and CE / UL certification to the markets.
2. The main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
FAQ:
Q: What information do i need to provide in order to get a quotation?
A: Generally, information about Power, Voltage, Frequency, Speed, also Motor Size is needed in order to select a right fan motor for you and provide you a quotation.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage quantities increase, please provide the information to our sales. We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 18 months warranty under normal usage. Every product has its own production code. This code is able to track the production time.
