TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-250-6A50（K55HXAJT-4108）-CJK |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

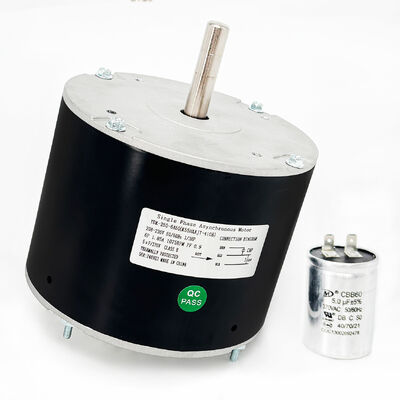

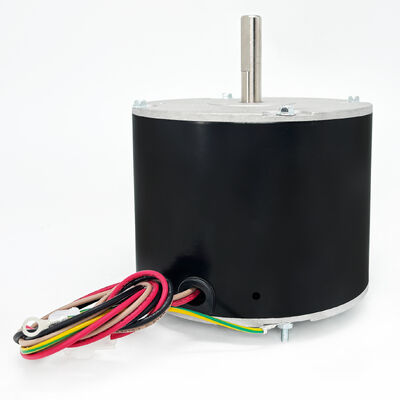

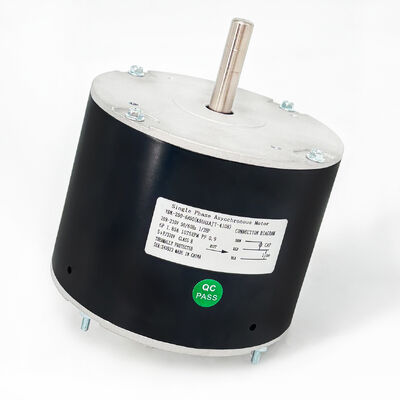

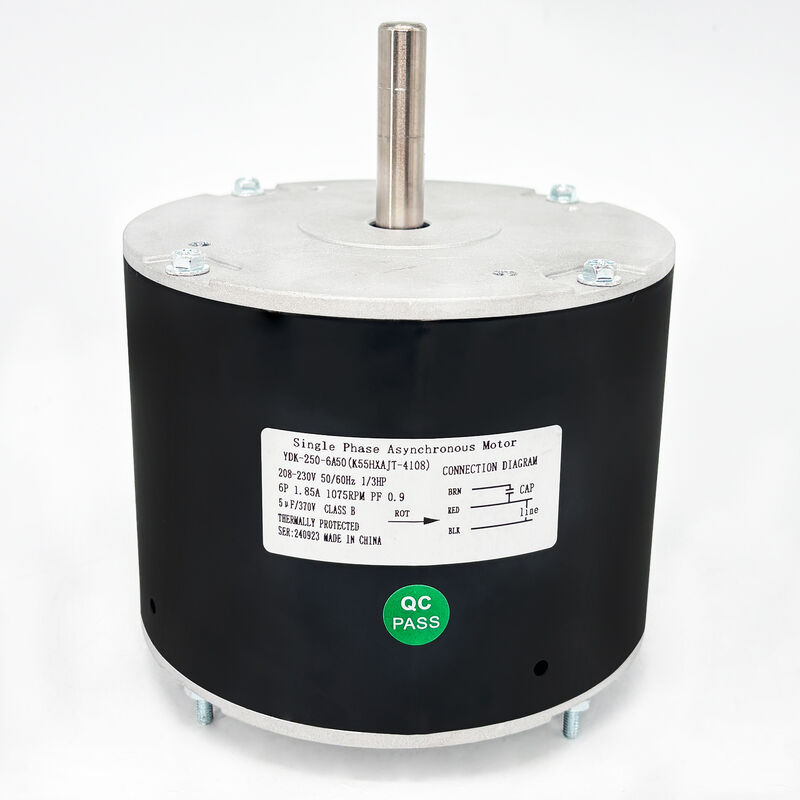

| Product: | Condenser Fan Motor | Replacement Motor: | K55HXAJT-4108 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.85A |
| Phase: | Single Phase | Output HP: | 250W 1/3HP |
| Shaft Flat: | One Flat | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 5μF/370V |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Insulation Class: | Class B | Pole: | 6P |
| Rotation: | CCW | PF: | 0.9 |
| Shaft Length: | 51mm/2.01" | Mounting Hole Spacing: | 132mm/5.20" |
| Lead Length: | 600mm/23.62" | Screw Length: | 8.5mm/0.33" |
