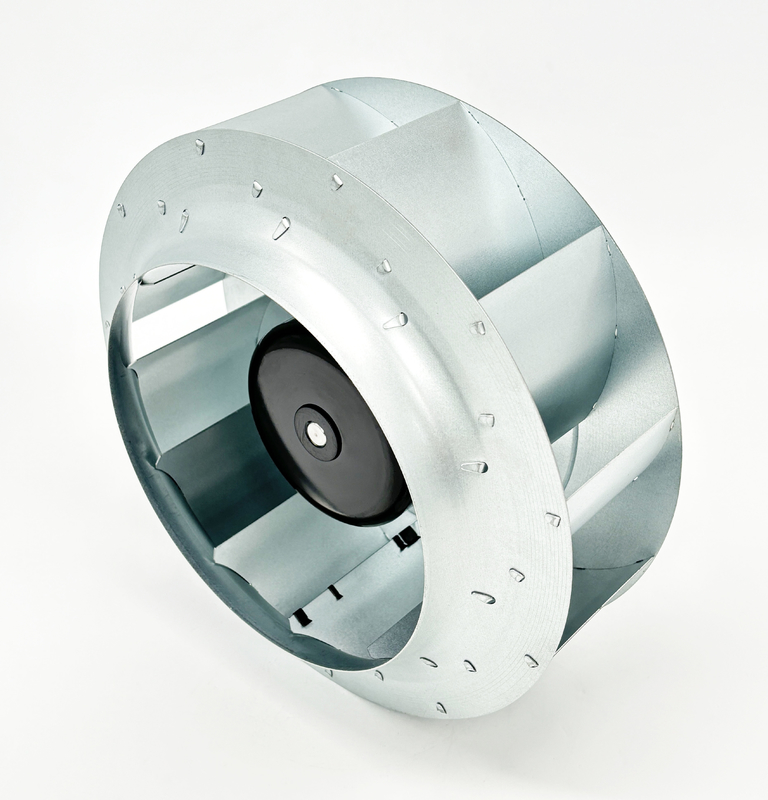

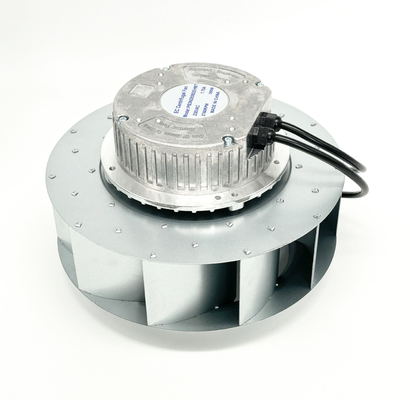

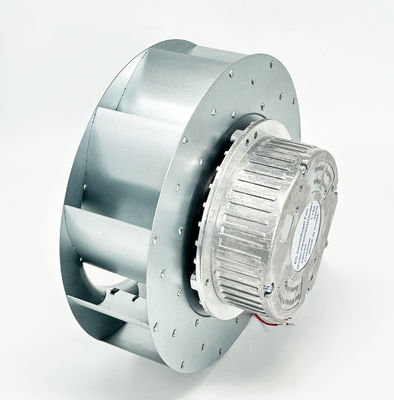

EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM

EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM

  • EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
  • EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
  • EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
EC Centrifugal Fan - 390W 2760RPM 230V 50/60Hz Control input 0~10VDC / PWM
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: PB3N280B2EHMT
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: EC Centrifugal Fan Supply Voltage: 230V
Thermal Overload: Equipped With An Automatic Thermal Overload Supply Frequency: 50/60HZ
Mounting: Stud Mounting All Angel Input Current: 1.75A
Bearings: NMB Ball Bearing Air Flow: 1649CFM /2800m3/H
Mounting Orientation: All Angle Input Power: 390W
Insulation Class: Class B Speed: 2760RPM
Rotation: CW Dimension: Ø281mm X 176mm
Signal Output: FG (Frequency Generator) Operating Temperature: -25℃ To 60℃
Speed Control: Control Input 0~10VDC / PWM Lead Length: 19.6" / 500mm
Number Of Blades: 11 Weight: 5000g
Highlight:

230V Centrifugal Fan

,

50/60Hz Centrifugal Fan

,

2760RPM Centrifugal Fan
