| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK55-6C3 |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

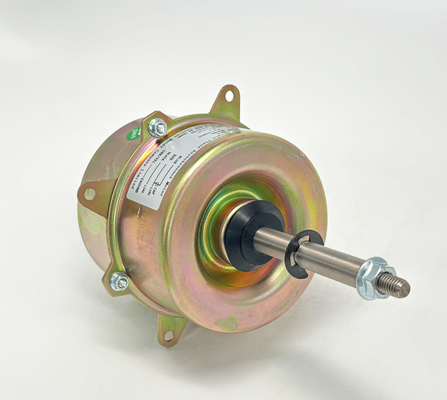

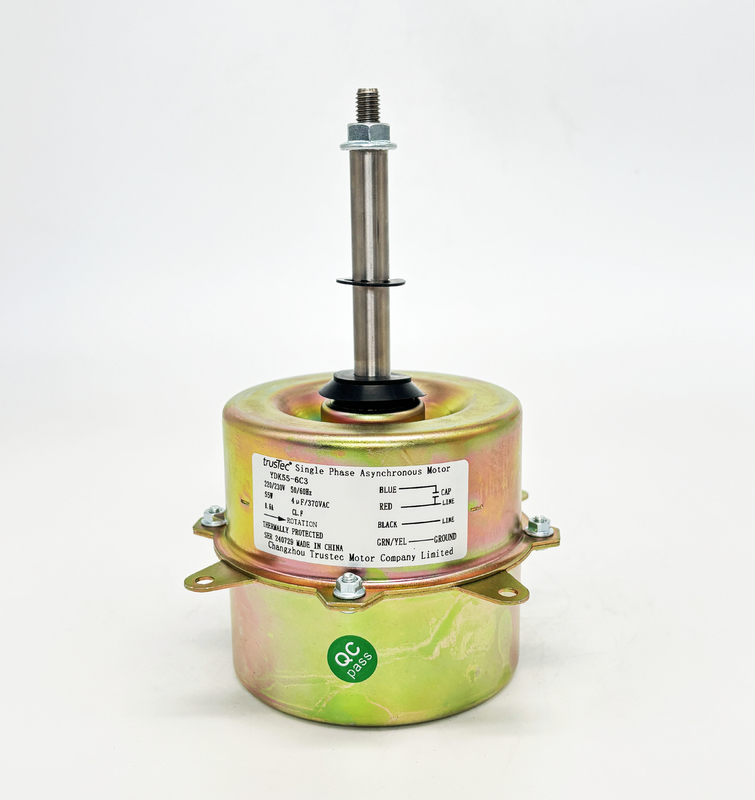

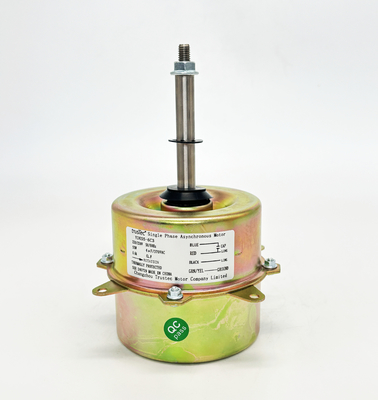

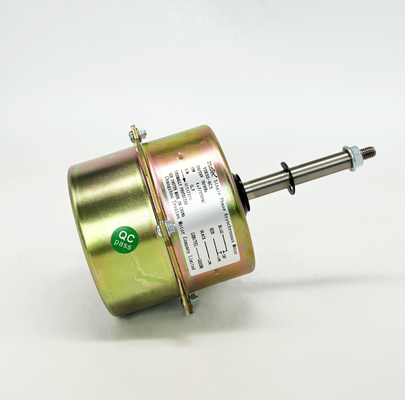

| Product: | Outdoor Fan Motor | Frame Size: | 95mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220/230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.6A |
| Phase: | Single Phase | Output Power: | 55W |
| Mounting Orientation: | All Angel | Shaft Diameter: | 0.47" / 12mm |
| Insulation Class: | Class F | Lead Length: | 39.3" / 1000mm |
| Mounting: | Stud Mounting All Angel | Poles: | 6P |
| Bearings: | Ball Bearing | Max. Ambient Temperature: | 40℃/104℉ |
| Rotation: | Reversible | Capacitor: | 4uF/370V |
| Highlight: | Air Conditioner Outdoor Fan Motor,55W Outdoor Fan Motor,220/230V Outdoor Fan Motor |
||
