Place of Origin: | Changzhou, China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | YDK-60-4A-VPL |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |

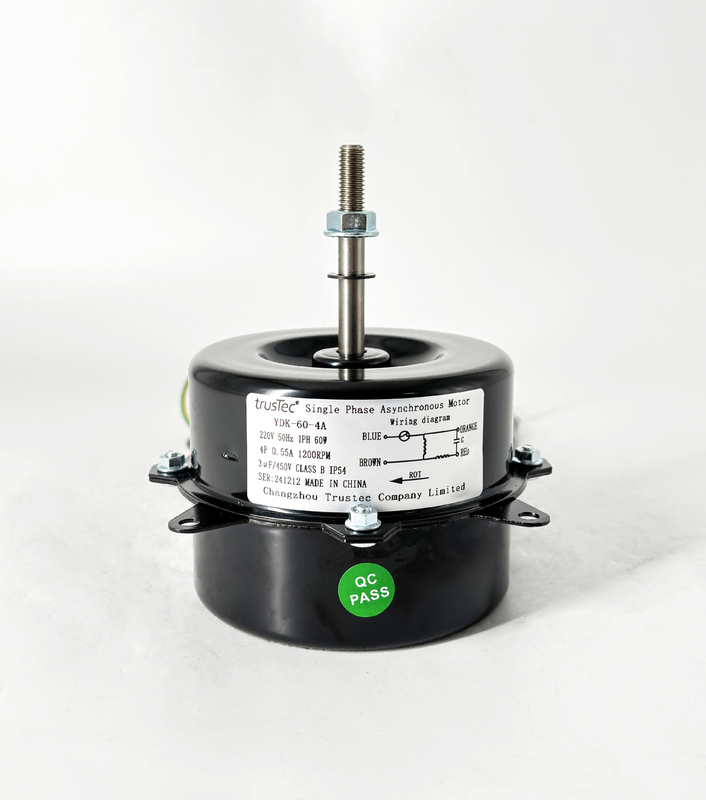

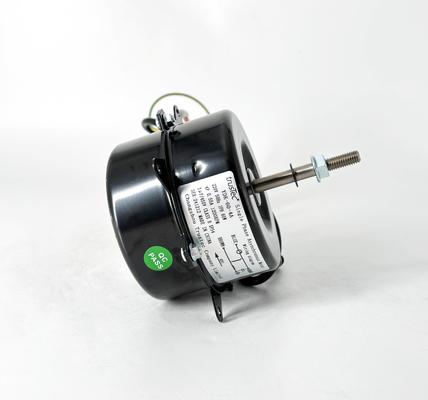

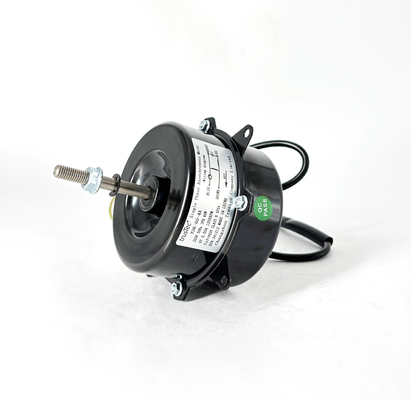

Product: | Outdoor Fan Motor | Frame Size: | 95mm |
---|---|---|---|
Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
Enclosure Type: | TEAO (Totally Enclosed Air Over ) | Supply Frequency: | 50Hz |
Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.55A |
Phase: | Single Phase | Output HP: | 60W |
Shaft Flats: | One Flat | Rated Speed: | 1200RPM |
Mounting: | Stud Mounting All Angel | Shaft Diameter: | 0.31" / 8mm |
Bearings: | Ball Bearing | Pole: | 4P |
Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
Rotation: | CW | ||
Highlight: | Air Conditioner Outdoor Fan Motor,220V Outdoor Fan Motor,1200RPM Outdoor Fan Motor |
