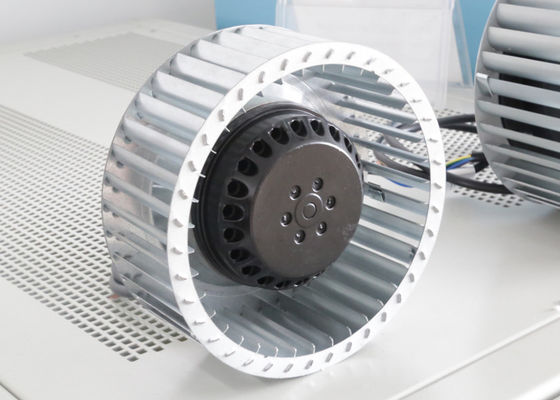

Outer Rotor Forward Centrifugal Blower Fan Low Noise

Product Details:

Place of Origin:	China
Brand Name:	trusTec
Certification:	CE and LVD approval
Model Number:	YWF4E-400

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiable (EXW/FOB/CNF/CIF)
Packaging Details:	Standard export carton packing, foam board inside for protection.
Delivery Time:	15-20 work days after order confirmation.
Payment Terms:	T/T, L/C
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Forward Centrifugal Fan	Fan Diameter:	400mm
Voltage:	220/380V	Frequency:	50/60Hz
Air Volume:	6500m³/h	Motor Speed:	1400RPM
Fan Type:	AC Direct Drive Centrifugal Fans	ODM Solutions:	Customized AC And EC Motors
ODM Solutions:	Customized AC And EC Motors	ODM Solutions:	ODM Solutions: Customized AC And EC Motors
High Light:	forward centrifugal blower fan , low noise centrifugal blower fan , light weight centrifugal blower fan

outer rotor forward centrifugal fan, metal centrifugal blower, 2/4/6/8 pole

Forward Fan Application

Automatic control devices, forced ventilation of electronic equipment and indoor pipeline dust removal, exhaust, heat exhaust, environmental protection, air purification and pollution control

Material: Impeller made of galvanized sheet steel with powder coating

Motor Protection Class: IP23

Bearing: Ball bearing

Protection: Thermal overload protector(TOP) wired intermally

Motor Insulation Class: F

Direction of Rotation: CW, see on the leads

AMB. Temp: -40~65℃

Advantage: Compact structure, small size, light weight, convenient installation and use.

Forward Fan Parameters

Model	Air Flow /m³/h	Air Flow /CFM	Voltage /V	Frequency /Hz	Power /W	Speed /RPM	Current /A	Noise /dB
YWF2E-120	252	148	230	50	68	2450	0.33	65
YWF2E-120	283	167	230	60	71	2750	0.31	68
YWF2E-140	480	283	230	50	75	2360	0.34	65
YWF2E-150	749	441	220	50H	97	2520	0.45	64
YWF2E-150	461	271	220	50L	82	1850	0.38	57
YWF2E-150	579	341	220	50H	68	2050	0.31	59
YWF4E-150	351	207	220	50L	48	1412	0.23	54
YWF2E-160	748	440	220	50H	230	2560	1.05	68
YWF4E-160	460	271	220	50L	165	1300	0.74	51
YWF2E-160	785	462	220	50H	205	2250	0.94	63
YWF4E-160	585	344	220	50L	110	1350	0.57	51
YWF4E-200	1200	714	220	50	330	1280	1.52	59
YWF4E-200	1200	714	380	50	330	1270	0.63	59
YWF4E-225	1600	952	380/220	50	490	1300	0.82/1.43	65
YWF4E-225	1710	1018	220	50	510	1320	2.3	65
YWF6E-225	1300	774	380/220	50	300	930	0.81/1.4	59
YWF4E-250	2300	1369	380/220	50	870	1400	1.8/3.1	72
YWF4E-250	2670	1589	220	50	900	1330	4.1	72
YWF6E-250	1545	920	380/220	50	320	910	0.81/1.4	62
YWF6E-250	1545	920	220	50	320	900	1.6	62
YWF4E-280	3400	2024	380/220	50	1700	1360	3.2/5.4	77
YWF4E-280	2800	1667	220	50	1600	1360	7.3	77
YWF6E-280	2250	1339	380/220	50	450	900	0.85/1.48	65
YWF6E-280	2250	1339	220	50	450	900	2.2	62
YWF4E-315	4200	2500	380/220	50	2200	1360	4.0/6.9	80
YWF4E-315	4300	2560	220	50	2300	1360	10	80
YWF6E-315	2250	1339	380/220	50	780	940	1.5/2.6	68
YWF6E-315	2250	1339	220	50	720	870	3.6	68
YWF4E-355	5500	3274	380/220	50	3500	1340	5.9/10.2	80
YWF6E-355	4050	2411	380/220	50	1150	900	2.3/4.0	70
YWF4E-400	6500	3869	380/220	50	4800	1400	8.0/13.9	82
YWF6E-400	7100	4226	380/220	50	2800	870	4.8/8.4	74
YWF8E-400	5800	3452	380/220	50	1700	700	3.7/6.4	65
YWF6E-450	7500	4464	380/220	50	3500	930	5.9/10.2	74
YWF8E-450	7200	4286	380/220	50	2000	680	4.1/7.1	68
YWF6E-500	8800	5238	380/220	50	4400	900	7.5/13.0	75
