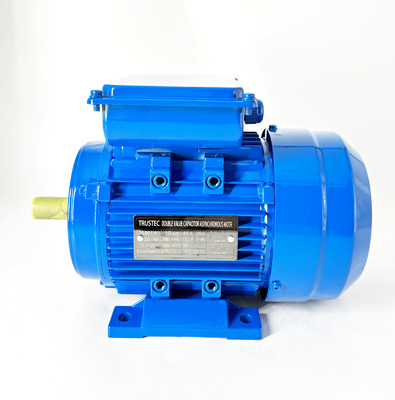

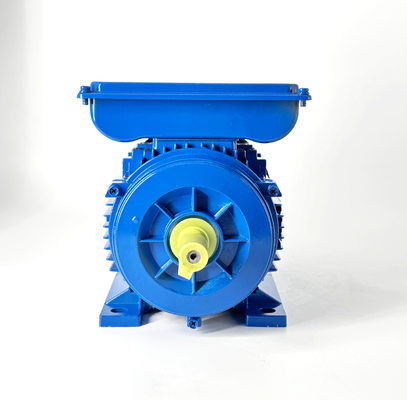

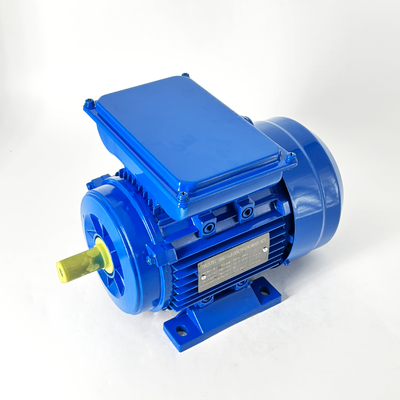

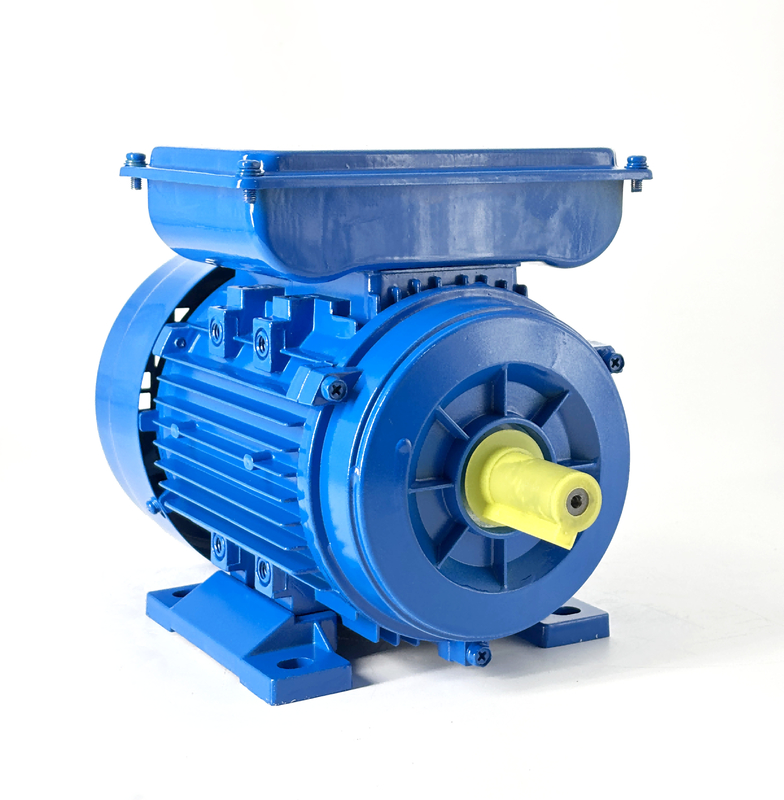

Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz

Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz

  • Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz
  • Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz
  • Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz
  • Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz
Single Phase AC Induction Motor YL801-4 - 550W 1400RPM 220V 50Hz
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE
Model Number: YL801-4-VPL
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Product: Double Value Capacitor Asynchronous Motor Center Height Of Frame: 80mm
Motor Type: Induction Motor Supply Voltage: 220V
Enclosure Type: TEAO (Totally Enclosed Air Over ) Supply Frequency: 50Hz
Thermal Overload: Equipped With An Automatic Thermal Overload Output HP: 550W
Phase: Single Phase Rated Speed: 1400RPM
Motor Housing: Aluminum Shell Current: 4.0A
Bearings: Ball Bearing PF: 0.92
Motor Winding: 100% Copper Winding Mounting Type: B3
Insulation Class: Class F Pole: 4P
Capacitor: 75uF/250V 18uF/450V
Highlight:

550W Single Phase AC Induction Motor

,

220V Single Phase AC Induction Motor

,

1400RPM Single Phase AC Induction Motor

Model Voltage(V) Frequency(Hz) Power(KW) Speed(RPM) Current(A)
YL712-4 220 50 0.37 1400 2.8
YL801-4 220 50 0.55 1400 4
YL802-4 220 50 0.75 1400 5.1
YL90S-4 220 50 1.1 1400 7.3
YL100L1-4 220 50 2.2 1400 13.9
