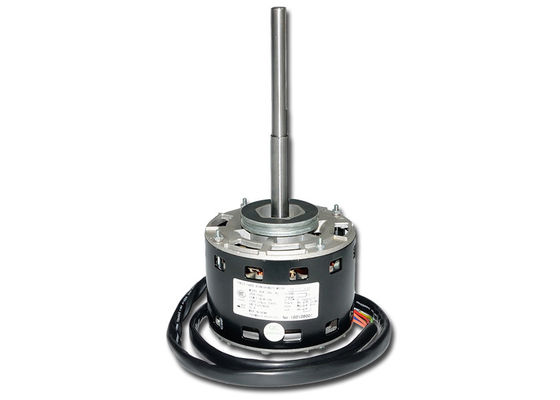

Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W

Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W

  • Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W
  • Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W
  • Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W
Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: CE
Model Number: YSK120 & YDK120
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Winding Material: 100% Pure Copper Application: Split Air Conditioner Indoor Unit
Power: 30W-200W Shaft Type: Single/Double
Insulation Class: E/B/F Protection Class: IP20-IP54
Bearing: Rolling Bearing Product Name: Indoor Fan Motor
ODM Solutions: Customized AC And EC Motors ODM Solutions: Customized AC And EC Motors
ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

ac fan motor

,

air cond fan motor

Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W





Technical Parameters



Below are representative motors, only for reference, dimensions can be customized according to customer requirements, OEM/ODM service offered.



Model Number

Voltage

/V

Frequency

/Hz

Output Power

/W

Rated Speed

/RPM

Capacitor

/μF

YSK120-37-4A 220-240 50 37 1350/3 SPD 3/370
YSK120-40-4A3 220-240 50 40 1100/3 SPD 3/370
YSK120-50-4A2 220-240 50 50 1300/3 SPD 3/400
YSK120-64-4A 220-240 50 64 1320/3 SPD 3/400
YSK120-90-4A 220-240 60 90 1600/3 SPD 4/370
YSK120-90-4A4 220-240 50 90 1300/3 SPD 5/370
YSK120-90-4A5 220-240 50 90 1175/3 SPD 4/370
YSK120-120-4A 220-240 60 120 1300/4 SPD 3/370
YSK120-185-4A 220-240 60 185 1625/3 SPD 7.5/370
YDK120-74-4A 220-240 50 74 1390/3 SPD 4/370
YDK120-75-6A 220-240 50 75 850 4/370
YDK120-90-4A 208-230 60 90 1550 4/370
YDK120-90-6 220 50 90 890/3 SPD 5/370
YDK120-90-6A2 220-240 50 90 850 5/400
YDK120-110-6A2 220-240 50 110 900 5/370
YDK120-150-6A 220-240 50 150 840/3 SPD 6/370
YDK120-185-4A 220-240 50 185 1250 5/440
YDK120-185-4A2 220-240 50 185 1050/3 SPD 10/370
YDK120-185-6A 220-240 60 185 950 5/400
YDK120-185-6A2 220-240 50 185 950 5/400



Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W



Product Features:



1. Use NSK low noise high quality rolling bearing.

2. Nickel plating for shaft, electrophoretic coating for enclosure.

3. Insulation class E/B/F, protection class IP20~IP54.

4. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.

5. 100% pure copper, aluminum motor can also be available if customer need large quantity.

Single Phase Indoor Fan Motor / Replacement Fan Motors 30W - 200W



Product Applications:



1. Indoor air conditioning unit and other ventilation equipment.

2. Dust purification equipment, cabinet type fan, fire fan, centrifugal fan.

3. Air purifier, row dust exhaust fan, fire smoke ventilation machine.

4. Electrostatic oil fume purifier, centrifugal exhaust fan, fire cabinet centrifugal fan.

5. Energy saving and environmental protection air conditioning, strong exhaust fan.

6. Pulse dust collector, cyclone dust collector, purification tower.



Main advantages:



1. Our top management is born from motor technicians.

2. OEM and ODM offer.

3. UL, CCC, ROHS, CE certificate and strict quality control.

4. We have had more than 10 years export experience, especially to Mid-east and South America.

5. Own a competent and honest sales team, always efficient to all your requirements.



Description:



1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.



2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.



3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.



FAQ:



Q1- What is the warranty of the motors?

The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.



Q2- Can you design the motor according to the different request?

Yes, we can offer the ODM.



Q3- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...



Q4- How many motors is 1*20GP container or 1*40HQ container loading?

2000-2200pcs for 1*20GP

4300-4500pcs for 1*40HQ

We always make full use of the space to save for the customers.



Q5- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.
