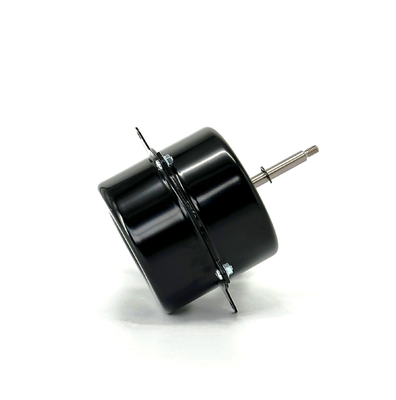

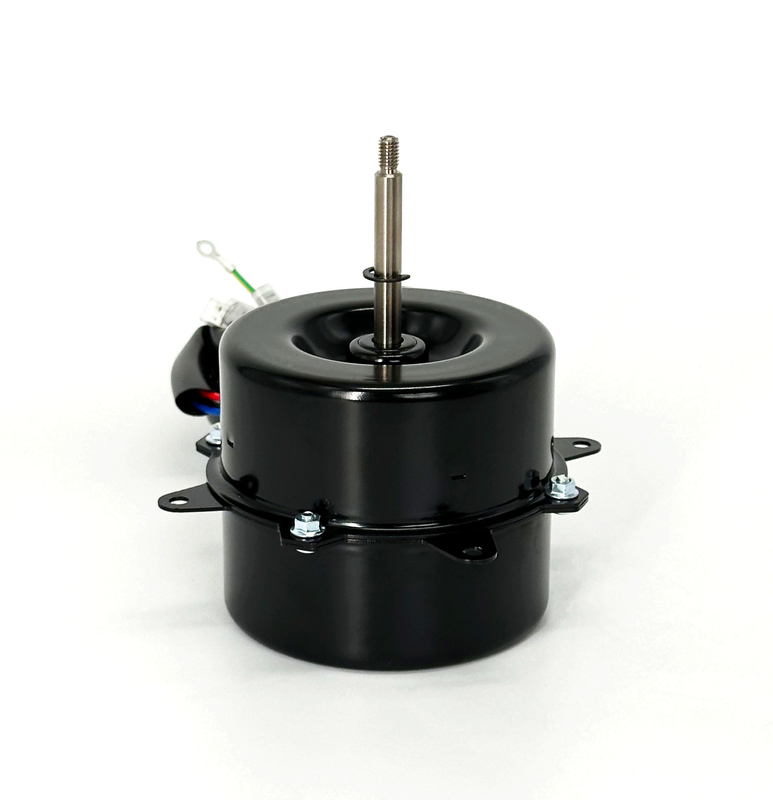

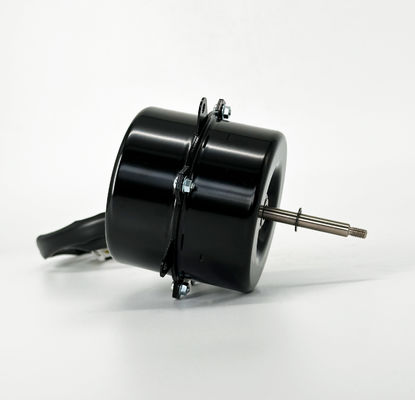

Totally Enclosed 200-240V 60HZ 50W 3uF/370V Outdoor Fan Motor

Key Parameters

Ps:all dimension can be customized according to customer requirement.

Product Features

1. Use NSK low noise high quality rolling bearing.

2. Small vibration,high efficiency .

3. Low temperature ,small vibration.

4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.

5.Totally Enclosed Air Over (TEAO) – Allows for all position mounting.

Product Applications

1. Air conditioner indoor / outdoor unit.

2. Air Purifiers, Air refresher.

3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.

4.AC condenser fans

FAQ

Q1- What is the warranty of the motors?

The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.

Q2- What is the application of the motors?

All the motors are widely used in HVC&R line.

Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.

Q4- Do you have distributors overseas?

Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...

Q5- What is the most important advantage for the export?

Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.

Q6- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.

Here are 7 factors to be noted before buying a new fan motor

The mounting – they are not all the same

Shaft size

RPM speed

Rotation direction of shaft

Motor measurements

Horsepower rating

Voltage

Before removing anything, you must make sure all power is disconnected and unplugged. The make a note of all the existing wiring conditions.

Take a photograph to remind yourself of what colors go where.

Unscrew all bolts that hold the motor in place and remove the fan blade, making a note of how it attaches to the shaft.

Now replace with the new motor and re-attach the fan blade in the same way you took it off.

It is always advisable to replace the air conditioning unit’s run capacitor, following all the advice above, copying wiring, color coding and

installation. Unscrew it from the unit and replace the capacitor with a new one that matches the technical information of the old one. Sometimes

they will come in different shapes and sizes, but if you have the right technical details, you cannot go wrong.
