Place of Origin: | Changzhou, China |
Brand Name: | trusTec |
Certification: | CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023 |
Model Number: | YDK-250-6A14 |
Minimum Order Quantity: | 200 pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 15 days fresh products after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |

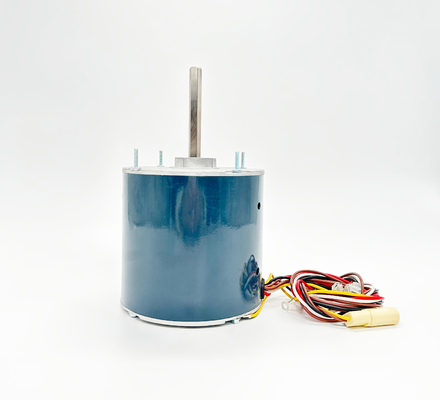

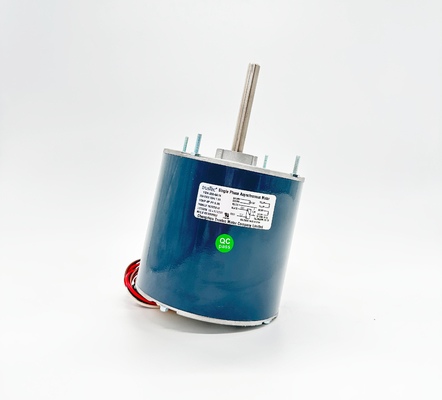

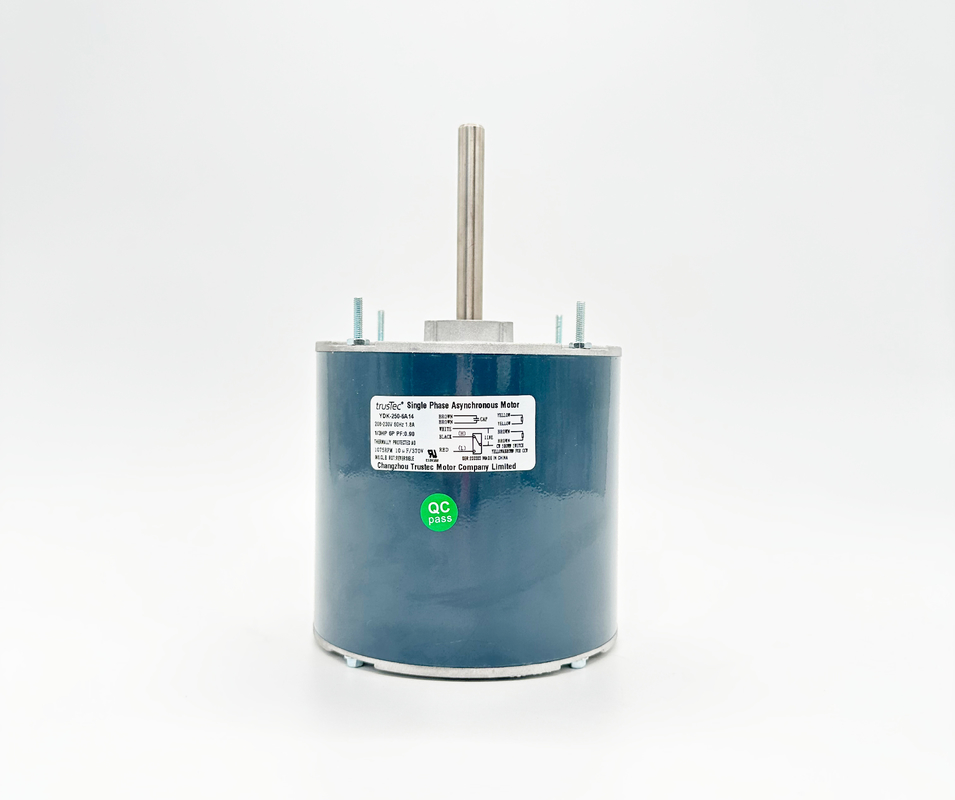

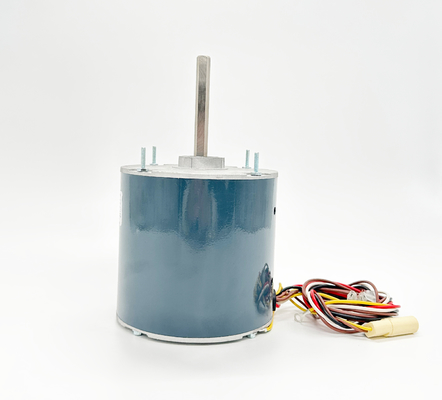

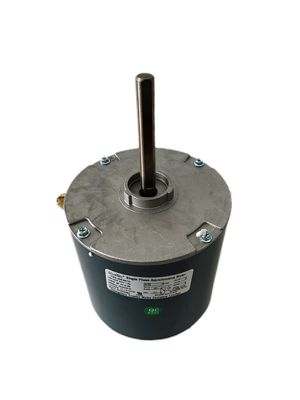

Product Name: | TrusTec AC Motor - 208-230V 60Hz 1/3Hp 1075RPM Condenser Fan Motor YDK-250-6A14 | Speed: | 1075RPM |
---|---|---|---|
Highlight: | 230V AC Condenser Fan Motor,1075RPM AC Motor,YDK-250-6A14 |
Product Name | Condenser Fan Motor | Voltage | 208V-230V |
---|---|---|---|
Frequency | 60Hz | Output Power | 1/3HP |
Pole | 6P | AMPS | 1.8A |
Speed | 1075RPM | Capacitor | 10μF/370V |
Insulation Class | Class B |
Power Factor |
0.9 |
Other protection | THERMALLY PROTECTED |
Ralated Outline
Key Parameters
Model |
Power /W |
Frequency /Hz |
Speed /RPM |
Rated Current /A |
Voltage /V |
YDK-250-6A14 | 1/3 HP | 60 | 1075 | 1.8 | 208-230 |
Ps:all dimension can be customized according to customer requirement.
Product Features
1. Use NSK low noise high quality rolling bearing.
2. Small vibration,high efficiency .
3. Low temperature ,small vibration.
4. Advanced manufacturing equipment, skilled craftwork, high level of automatization, high quality insurance.
Product Applications
1. Air conditioner indoor / outdoor unit.
2. Air Purifiers, Air refresher.
3. Range hood, sewer grinder, dehumidifier, medical equipment, special blender etc.
FAQ
Q1- What is the warranty of the motors?
The warranty is 36 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- What is the application of the motors?
All the motors are widely used in HVC&R line.
Q3- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q4- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q5- What is the most important advantage for the export?
Besides the competitive price with the good quality, the critical point is the quick response, the efficient export team and the fast delivery time.
Q6- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
A condenser fan motor is a component in the condensing unit of an HVAC system, which is located outdoors. It has a significant effect on the comfort level in your home. As such, it plays an important role in sustaining the cooling process in your air-conditioner. It helps produce cool air by drawing air in from the outside and expelling heat into the outdoor air.
Without proper maintenance, a condenser fan motor can accumulate dirt, dust, and debris. Plus, it will experience increased wear and tear over time. And this can lead to warmer air, poorer airflow, and a stuffier indoor environment. A smooth-running condenser fan motor doesn’t only make your home comfortable. It can also help reduce your energy consumption. Furthermore, it improves your indoor air quality, and extends the life of your equipment.
