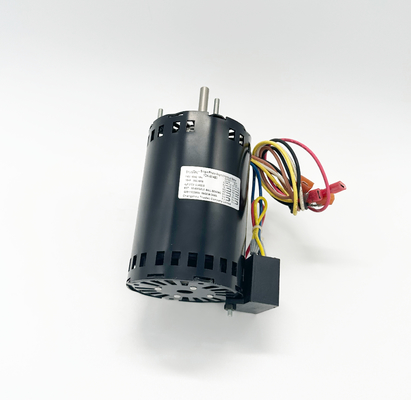

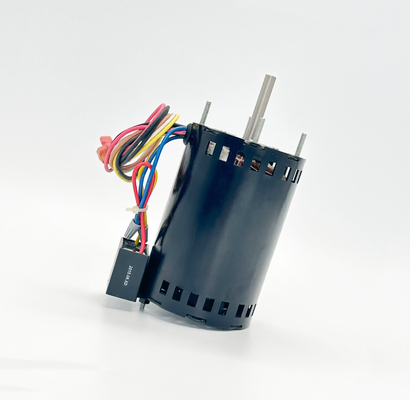

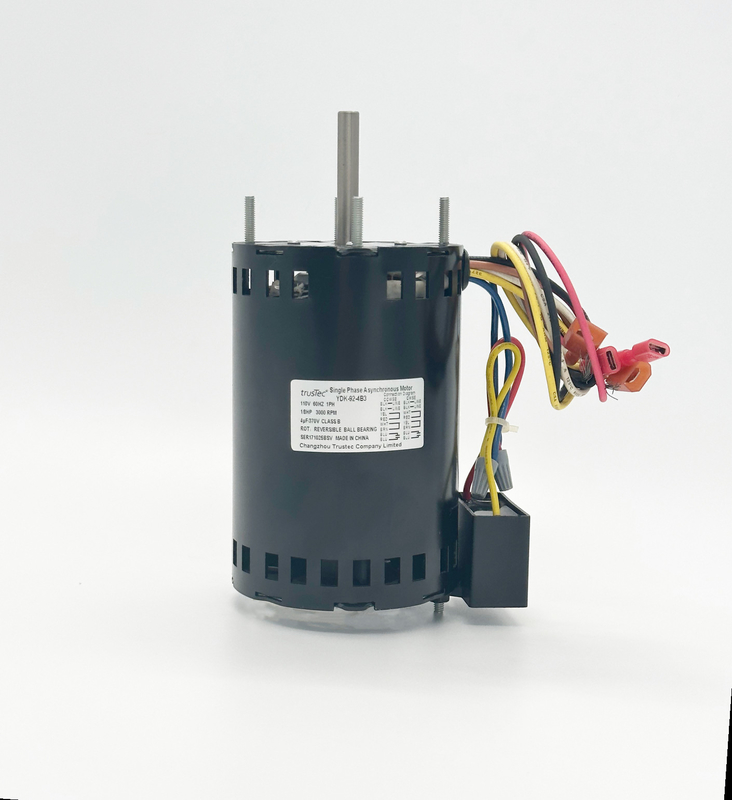

trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3

trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3

  • trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3
  • trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3
  • trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3
trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3
Product Details:
Place of Origin: Changzhou, China
Brand Name: trusTec
Certification: CE、High-tech Enterprise Certificate、ISO9000 Certificate 2023
Model Number: YDK-92-4B3
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description

Product Name Blower Motor Voltage 110V
Frequency 60Hz Output Power 92W
Pole 4 AMPS /
Speed 3000RPM Capacitor 4μF/370V
Insulation Class Class B

Power Factor

/
Other protection THERMALLY PROTECTED



Key Parameters

Model

Power

/W

Frequency

/Hz

Speed

/RPM

Rated Current

/A

Voltage

/V

YZF-20-4B 92 60 3000 / 110

Ps:all dimension can be customized according to customer requirement.



trusTec AC Motor - 92W 3000RPM 3.3 inch Blower MotorYDK-92-4B3



Changzhou Trustec Co.,Ltd is UL, ISO9001, CCCcertificated,covering an area of 20,000 square meters,and have 386 employees. Our main products include small-power AC motors for all sorts of air conditioners, plastic series AC motor and brushless DC motors.
The annual production is about 20,000,000 sets. We posssess advanced computerized test equipment,and a production system which consists of design, potimizing, tooling, winding, insulation, metalworking, assembly test and after-sales service.



Customization:

1. Shaft diameter or length can be any as customer’s request

2. Stator height can be any from 10mm to 50mm.
3. Mounting holes size and distance can be any as customer’s needs
4. Brackets can be either metal or aluminum. Its height can be changed.

5. Motor rotation direction can be CW or CCW.

6. The motors can be customized according to the different voltages,Frequency and rotation speed.



Our services:

1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.



FAQ:

1.How can you control the noise?

A:Our products carefully check the drawing and process the shaft and end cover;our inspector check the dynamic balance repeatedly;



2.How can you decrease the heat production?

A:Toally copper line lead to less heat production;IP55 class insulation paper avoid cutting-out;multiple inspections ensure no carelessness exist;Professional application guidance.
