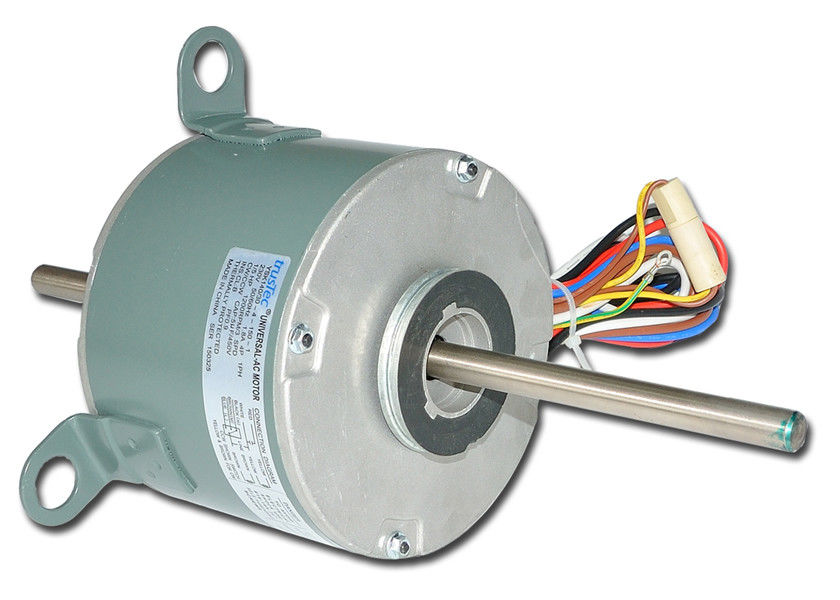

Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System

Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System

  • Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System
  • Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System
  • Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System
Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YSK140-120-6A2
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Motor Diameter: 140mm Application: Window Air Conditioner
Power: 1/6HP Shaft Type: Double Shaft
ROT: CCW-LE Product Name: Air Conditioner Fan Motor
ODM Solutions: Customized AC And EC Motors ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

air conditioning fan motor

,

air condenser fan motor

,

6HP Air Conditioner Fan Motor

Universal Air Conditioner Fan Motor 1/6 HP For Air Ventilation System




Parameters:


Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.



Model Number

Voltage
/V

Frequency
/Hz

Power

Speed
/RPM

Rotation

Capacitor
/MDF/VAC

OEM Model
YSK140-120-6A 208-230 60 1/6HP 1095/3 SPD CCW-LE 5/370 5KCP39DGS008T
YSK140-120-6A2 208-230 60 1/6HP 1000/2 SPD CW-LE 5/370 5KCP39DGM511T
YSK140-120-6A5 208-230 60 1/6HP 1095/3 SPD CCW-LE 5/370 5KCP39DGM004T
YSK140-120-6A6 208-230 60 1/6HP 1050/3 SPD CCW-LE 5/370 F48U05B09
YSK140-120-6A7 208-230 60 1/6HP 1050/3 SPD CW-LE 5/370 K55HXPKG-5158
YSK140-120-6A18 208-230 60 1/6HP 1000/2 SPD CW-LE 5/370 F48SE6MA61
YSK140-120-6A3 208-230 60 1/6HP 1050/3 SPD CW-LE 5/370 ACE-635-16
YSK140-120-4A22 208-230 60 1/6HP 1050/3 SPD CCW-LE 5/370 F48CS6MA14
YSK140-120-4A23 115 60 1/6HP 1075/3 SPD CCW-LE 5/370 D754
YSK140/30-150-4 220/230 50 1/5HP 1200/3 SPD REVERSIBLE 5/370
YSK140-150-6A 208-230 60 1/5HP 1115/3 SPD CCW-LE 5/370 5KCP39FGM4440
YSK140-150-6A2 208-230 60 1/5HP 1075/3 SPD CW-LE 4/370 5KCP39FGM672S
YSK140-150-6A3 208-230 60 1/5HP 1100/2 SPD CW-LE 5/370 5KCP39FGM639T
YSK140-150-6A4 208-230 60 1/5HP 1115/3 SPD CW-LE 5/370 F48U01A30
YSK140-150-6A5 208-230 60 1/5HP 1050/3 SPD CW-LE 5/370 5KCP39HGS635S
YSK140-150-6A6 208-230 60 1/5HP 1100/3 SPD CCW-LE 5/370 K55HXLEK-5966
YSK140-150-6A7 208-230 60 1/5HP 1100/3 SPD CCW-LE 5/370 ACE-000-33C
YSK140-150-6A10 208-230 60 1/5HP 1050/3 SPD CW-LE 5/370 F48533B382U-Y
YSK140-150-6A14 208-230 60 1/5HP 1050/2 SPD REVERSIBLE 4/370 K55ZZEHN-4921
YSK140-150-4A21 208-230 60 1/5HP 1625/3 SPD CCW-LE 5/370 D775
YSK140-150-4A22 115 60 1/5HP 1625/3 SPD CCW-LE 5/370 D776
YSK140-150-4A 208-230 60 1/5HP 1350/2 SPD CCW-LE 5/370 KA5HXNGT-9416C
YSK140-150-4A2 208-230 50 1/5HP 1360/3 SPD REVERSIBLE 5/400 PM410542


Features:


1. Single-Phase double shaft motor with steel housing, designed for window type air conditioner.
2. High quality pure copper winding with excellent insulation and heat transmission properties.
3. Pretty appearance, low starting current, smooth turning, low temperature rise, low noise and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life.
6. Models with power 1/6HP, 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to customer's requirement. Pure copper coil or aluminum coil can be chosen.

Product Applications:


1. Window type air conditioner.
2. Fresh air ventilation system.
3. Air filtration and purification.



Services:


1. Reply to inquiry within 12 hours.
2. We cooperate with customer to design and develop new product.

3. Branded trusTec motors, OEM also provide.
4. We provide quality after-sales service.
5. We are willing to help arrange delivery, testing and other requests.



Company information:



1. 20 years focusing on motor’s design with a professional technical elite team.
2. Strict quality management and supervision systems. (CE/UL/RoSH certification)
3. We have our own factory, the price of our products are all factory price.
4. Independent brand, good at innovation, energy conservation design.


FAQ:



Q: How can you ensure the motor can drive the machine?
A: Our factory chooses 100% pure copper wire and capacitor with appropriate volume, and our professional manager will provide you accurate purchase guide.

 Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover, and our QC & QA check the dynamic balance repeatedly.

Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; IP55 class insulation paper avoid cutting-out, multilple inspections ensure no carelessness exist, professional application guidance.



Q: What information do i need to provide in order to get a quotation?
A: Generally, information about power, voltage, frequency, speed, also motor size, mounting type is needed in order to select a right fan motor for you and provide you a quotation.
