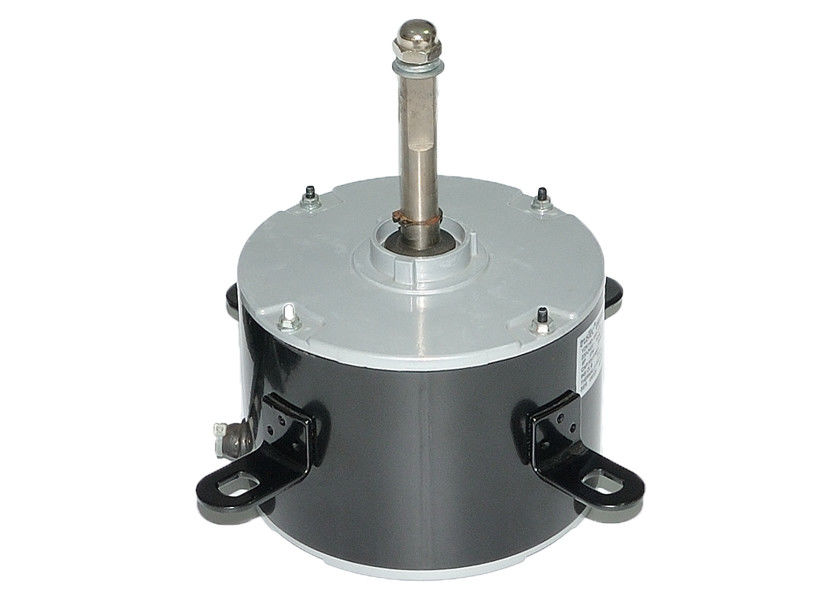

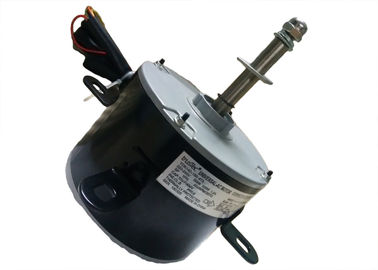

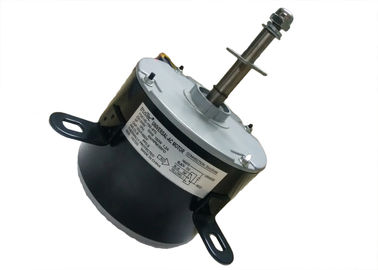

Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating

Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating

  • Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating
  • Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating
  • Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating
Three Speed Air Cooler Fan Motor 1/5 HP 10uF 450V Capacitor Operating
Product Details:
Place of Origin: China
Brand Name: trusTec
Certification: UL Approval E529388,CE approval
Model Number: YDK140-150-6T5
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable (FOB/CNF/CIF)
Packaging Details: Standard carton packing, foam board inside for protection.
Delivery Time: 15 days fresh products after order confirmation.
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Contact Now
Detailed Product Description
Insulation Class: B Output Power: 150W
Motor Diameter: 140mm Frequency: 50Hz
Pole: 6 Voltage: 220-240V
Rated Current: 1.2A Capacitance: 10μF/450V
Product Name: Air Cooler Motor ODM Solutions: Customized AC And EC Motors
ODM Solutions: Customized AC And EC Motors ODM Solutions: ODM Solutions: Customized AC And EC Motors
High Light:

air cooler fan motor

,

cooler fan motor

Three Speed Air Cooler Motor 1/5 HP 10uF 450V Capacitor Operating




Product specification:


Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered .



Model

Power

HP

Voltage

V

Frequency

Hz

Speed

RPM

Rotation Insulation Class
YDK140-150-6T5 1/5 220-240 50 850/3 SPD CCW B
YDK160-185-4A 1/4 115/127 50/60 1425/1725 CW-SE B
YDK160-185-4A2 1/4 220/230 50/60 1425/1725 CW-SE B
YDK160-245-4A 1/3 115/127 50/60 1425/1725 CW-SE B
YDK160-245-4A2 1/3 220/230 50/60 1425/1725 CW-SE B
YDK160-375-4A 1/2 115/127 50/60 1425/1725 CW-SE B
YDK160-375-4A2 1/2 220/230 50/60 1425/1725 CW-SE B
YDK160-550-4A 3/4 115/127 50/60 1425/1725 CW-SE B
YDK160-550-4A2 3/4 220/230 50/60 1425/1725 CW-SE B
YDK160-735-4A 1 115/127 50/60 1425/1725 CW-SE B
YDK160-735-4A2 1 220/230 50/60 1425/1725 CW-SE B


Product materials:


1. Bearing: rolling bearing, NSK low noise high quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.


Product features:


1. Motor with steel housing, designed for cooling system, evaporative cooler etc, suit for hot weather environment.


2. High quality winding with excellent insulation and heat transmission properties.


3. Nice appearance, high starting torque, low starting current, smooth turning, low temperature rise, low vibration, low noise and great overload performance.


4. Saving Energy, higher efficiency.


5. Long life, Equipped with overheating protection, good Protection against Humidity.


6. Special motors can be designed according to customer's requirement.


7. Be wildly used in Iraq, Sudan, Iran, Saudi and other gulf country market.

Product application:


1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.


Strong points:

1. Most professional & experienced engineers design the highly reasonable structure for the motors.
2. High precision automatic line and test equipment ensure the most stable quality.
3. Abundant scale and capacity promise the market supply ability and continuous operation.

About company:


Changzhou Trustec Company is focus on the motor design and production for 17 years.
The monthly capacity can achieve to 100,000pcs in HVAC industry.
The brand name is trusTec, her lively meaning is to TRUST the Teams' Efficiency and Competence.
The main exporting market is North America, The Nerthlands and Saudi Arabia.


FAQ:



1. Where is your factory?
We are located at Changzhou city of China Jiangsu province, which is also called as motor producing base, the world's outstanding motor manufacturers sets factories here.

2. Can you provide the samples for evaluations before oders?
Nomally we provide each model 1 piece sample for free and customers handle the delivery cost.

3. Are you a manufacturer or trading company?
We are a motor factory and in the industry for 17 years, you are welcomed to visit our factory at any time.
