Place of Origin: | China |
Brand Name: | trusTec |
Certification: | CE |
Model Number: | YSK-400-4 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiable (FOB/CNF/CIF) |
Packaging Details: | Standard carton packing, foam board inside for protection. |
Delivery Time: | 20 work days after order confirmation. |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Type: | Air Curtain Motor | Power: | 400W |
---|---|---|---|
Voltage: | 220V | Frequency: | 50Hz |
Pole: | 4 | Capacitance: | 8μF |
ODM Solutions: | Customized AC And EC Motors | ODM Solutions: | Customized AC And EC Motors |
ODM Solutions: | ODM Solutions: Customized AC And EC Motors | ||
Highlight: | curtain motor,double shaft motor,SS Air Curtains Fan Motor |

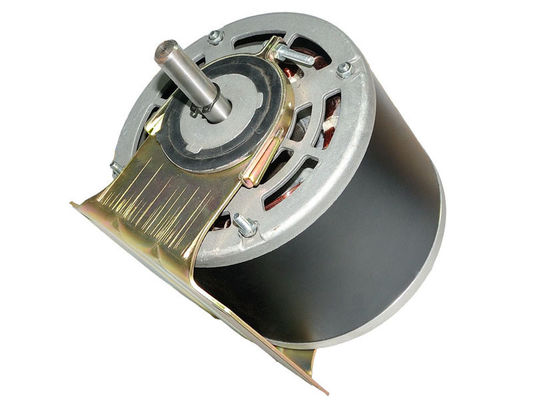

industrial outdoor hot water heated air curtain fan motors, short shaft air door fan motor
Quick View
trusTec branded air curtain motors use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Insulation class E/B/F, protection class IP00~IP54.
Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
Product Application
Air curtain and other related ventilation equipment.
Outline Size
Technical Parameter
Model Type |
Voltage /V |
Frequency /Hz |
Output Power /W |
Pole |
Capacitor /μF |
Shaft Diameter /mm |
Center High /mm |
YDK-30-2 | 220 | 50 | 30 | 2 | 4 | M8 | 105 |
YSK-60-2 | 220 | 50 | 60 | 2 | 6 | M8 | 105 |
YSK-60-4 | 220 | 50 | 60 | 4 | 5 | 12 | 71 |
YSK-80-4 | 220 | 50 | 80 | 4 | 6 | 12 | 71 |
YSK-100-4 | 220 | 50 | 100 | 4 | 6 | 12 | 71 |
YSK-120-4 | 220 | 50 | 120 | 4 | 8 | 12 | 71 |
YSK-180-4 | 220 | 50 | 180 | 4 | 10 | 12 | 71 |
YSK-250-4 | 220 | 50 | 250 | 4 | 12 | 12 | 71 |
YSK-280-4 | 220 | 50 | 280 | 4 | 12 | 12 | 71 |
YSK-370-4 | 220 | 50 | 370 | 4 | 16 | 12/14 | 71 |
YSK-400-4 | 220 | 50 | 400 | 4 | 16 | 14/16 | 71 |
YSK-550-4 | 220 | 50 | 550 | 4 | 16 | 14/16 | 71 |
Listed are representative air curtain motor, the outline and parameters can be customized according to requirement.
